Features
Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
2 1.25Gbps SFP interfaces
Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
Up to 8 IEEE 802.3af devices powered
Supports PoE Power up to 15.4 watts for each PoE port
Up to 4 IEEE 802.3at devices powered
Supports PoE Power up to 30 watts for each PoE port
120-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
2M packet buffer
10K Jumbo frame supports at 1000Mbps duplex mode
Automatic address learning and address aging
Made of metal, desktop size and wall-mount design

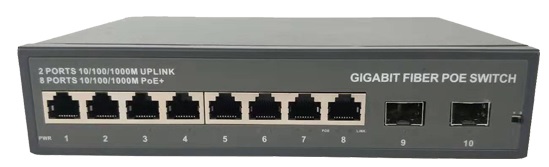

Front Panel
Description | ||
Model | HC-808GP-2SFP | |
Power Supply | Power Supply Mode | Power Adapter |
Voltage Range | DC 52V | |
Power Consumption | The device <5W， POE power supply <120W | |
Network Port Parameter | Network Ports | 1～8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink 2 SFP:1.25Gbps |
Transmission Distance | 1~8 Ethernet Port：0~100m 2 SFP: According to different SFP | |
Transmission Media | 1~8 Ethernet Port：Cat5e/6 standard UTP cable， 2 SFP: LC interface optical fiber | |
POE Agreement | IEEE802.3 af/at standards | |
PoE Power Supply Mode | End-span method | |
PoE Power Supply Wattage | Each port≤30W,Whole device<120W | |
Network Switch Specification | Network Standard | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
Swap Mode | Store-and- forward | |
Switch Capacity | 24Gbps | |
MAC Address List | 8K | |
Status Indicators | Power Indicator Light | One power light （green） |
Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected | |
PoE Indicator | 1~8 PoE indicator light（yellow） | |
Network Port LED | 1~8 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
Protection Level | Surge Immunity | Level 3, executive standard：IEC61000-4-5 |
Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard：IEC61000-4-2 | |
Operating Environment | Working Temperature | -10℃～55℃ |
Storage Temperature | -40℃-85℃ | |
Humidity(non-congeal) | 0~95% | |
Mechanical Attributes | Dimensions (L*W*H) | 202mmx140mmx44mm |
Color | Black | |
Weight | 1.2kg | |
Reliability | Mean time between failures （MTBF） | ＞50000h |
