8-Port 10/100Mbps Fast Ethernet Switch
8-Port supports 52V DC power to POE powered device
1 Port 10/100Mbps fast Ethernet Switch
Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
Up to 8 IEEE 802.3af devices powered
Supports POE Power up to 15.4 watts for each POE port
Up to 3 IEEE 802.3at devices powered
Supports POE Power up to 30 watts for each POE port
96/120-watt POE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X (Port 1 to Port 9)
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 2K absolute MAC addresses
Automatic address learning and address aging

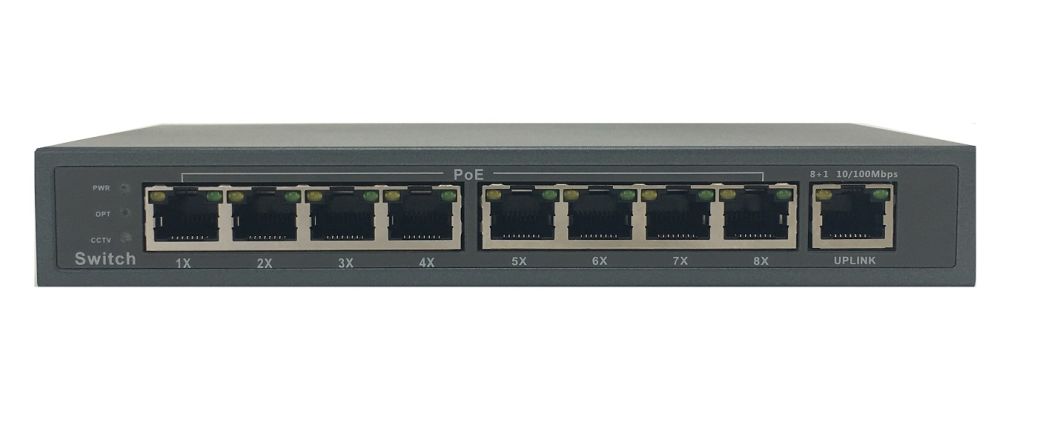

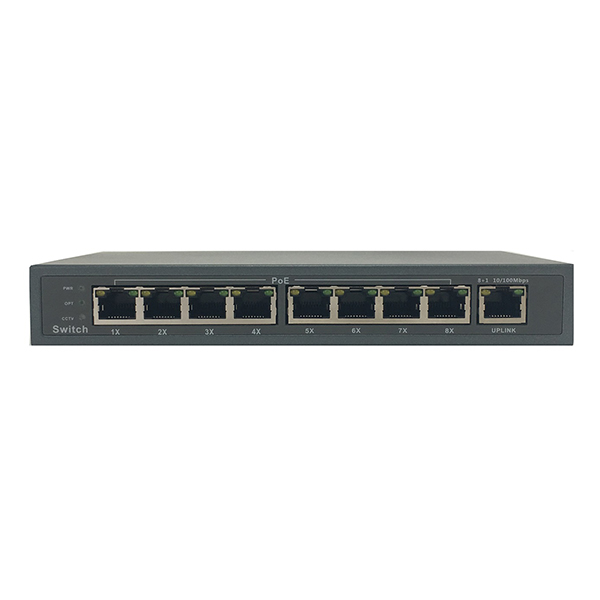

Front panel
| Item | Description | |
| Model | HC-608EP-E | |
| Power Supply | Power Supply Mode | Power Adaptor |
| Voltage Range | DC48~56V | |
| Power Consumption | The device<5W, POE power supply<96/120W | |
| Network Port Parameter | Network Ports | 1~8 Ethernet Port:10/100Mbps 1 Uplink Port:10/100 Mbps |
| Transmission Distance | 1~8 Ethernet Port:0~100m Mandatory 10 Mbps reach up to 250m 1 Uplink Port:0~100m | |
| Transmission Media | 1~8 Ethernet Port:Cat5e/6 standard UTP cable, Uplink Port:Cat5e/6 standard UTP cable | |
| POE Agreement | IEEE802.3 af/at standards | |
| POE Power Supply Mode | End-span method | |
| POE Power Supply Wattage | Each port≤30W,Whole device<96/120W | |
| Network Switch Specification | Network Standard | IEEE 802.3/802.3u |
| Swap Mode | Store-and- forward | |
| Data-Caching Mechanism | 1M | |
| MAC Address List | 2K | |
| Status Indicators | Power Indicator Light | One power light (green) |
| FE Uplink Port | LED (Green): On, port is link on; Off, port is link down; | |
| POE Indicator | 8 POE indicator light(yellow) | |
| POE Network Port LED | 1~8 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
| Switch | CCTV Switch | On: CCTV Mode, support 250meter power and data Off: normal mode, support 100meter |
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
| Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |
| Operating Environment | Working Temperature | 0ºC~55ºC |
| Storage Temperature | -40ºC~70ºC | |
| Humidity(non-congeal) | 0~95% | |
| Mechanical Attributes | Dimensions (L*W*H) | 190mmx98mmx28mm |
| Color | Black | |
| Weight | 612g | |
| Reliability | Mean time between failures (MTBF) | >50000h |
