Five 10/100Mbps Fast Ethernet ports
4 ports support 52V DC power to POE powered device
Complies with IEEE 802.3af/at Power over Ethernet end-span + mid-span PSE
Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered
Supports POE power up to 30 watts for each POE port
60-watt POE budget
Hardware DIP switch for "Default" and "CCTV" mode selection; the "CCTV" mode features 30-watt POE transmit distance of 250m at speed of 10Mbps
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in the standard mode
Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
0.74M packet size support
Integrates address look-up engine, supporting 1K absolute MAC addresses
Automatic address learning and address aging
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Desktop palm size
LED indicators for POE ready/activity and LINK/ACT

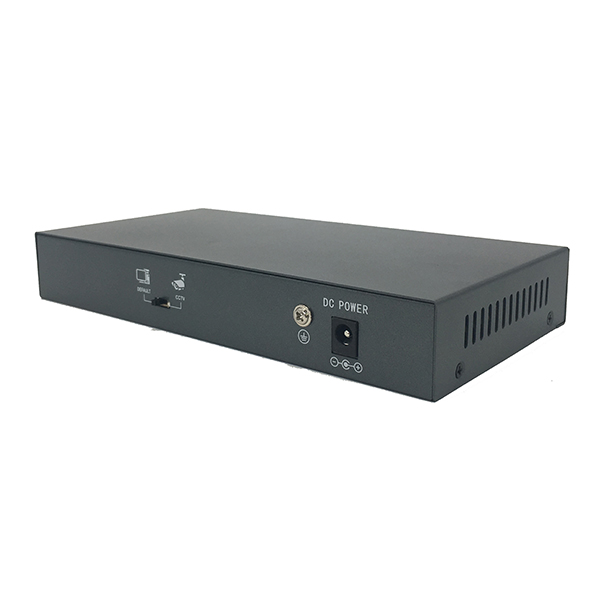

One 52V DC power jack

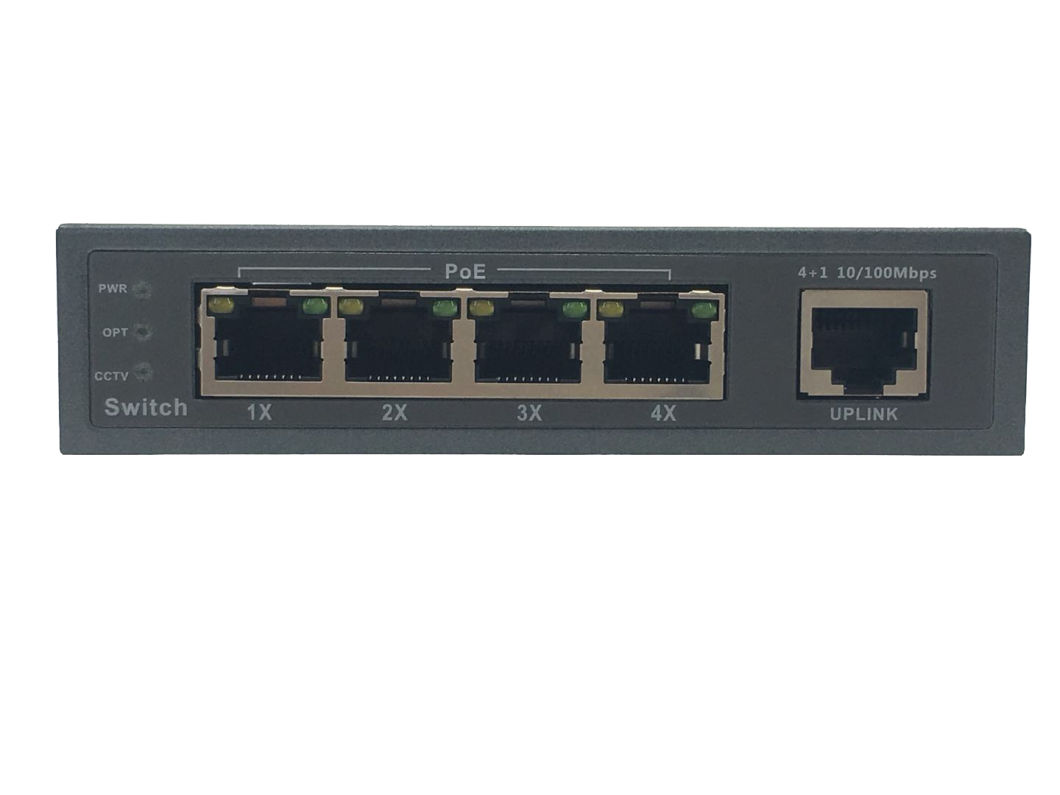

Front panel
Item | Description | |
Model | HC-604EP-E | |
Power Supply | Power Supply Mode | Power Adaptor |
Voltage Range | DC48~56V | |
Power Consumption | The device <5W POE power supply<60W | |
Network Port Parameter | Network Ports | 1~4 Ethernet Port:10/100Mbps 1 Uplink Port:10/100Mbps |
Transmission Distance | 1~4 Ethernet Port:100m Mandatory 10 Mbps reach up to 250m Uplink port:100m | |
Transmission Media | 1~4 Ethernet Port:Cat5e/6 standard UTP cable, Uplink Port:Cat5e/6 standard UTP cable | |
POE Agreement | IEEE802.3 af/at standards | |
POE Power Supply Mode | End-span method | |
POE Power Supply Wattage | Each port ≤30W,Whole device<60W | |
Network Switch Specification | Network Standard | IEEE802.3 10BASE-T,IEEE802.3u 100BASE-TX/FX,IEEE802.3az(Uplink optical fiber port ) |
Swap Mode | Store-and- forward | |
Data-Caching Mechanism | 0.74M | |
MAC Address List | 1K | |
Status Indicators | Power Indicator Light | One power light (Green) |
Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data | |
POE Indicator | 4 POE indicator light(yellow) | |
POE Network Port LED | 1~4 port ( green light on RJ45 jack) Blinking when transceiver data | |
Switch | CCTV Switch | On: CCTV Mode, support 250meter power and data Off: normal mode, support 100meter |
Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |
Operating Environment | Working Temperature | 0ºC~55ºC |
Storage Temperature | -40ºC~70ºC | |
Humidity(non-congeal) | 0~95% | |
Mechanical Attributes | Dimensions (L*W*H) | 118mmx78mmx28mm |
Color | Black | |
Weight | 425g | |
Reliability | Mean time between failures (MTBF) |
