24-port 10/100BASE-T Gigabit Ethernet RJ45 copper with POE function
2 1.25Gbps SFP interfaces combo with 2-port 10/100/1000BASE-T Gigabit
Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 24 ports of IEEE 802.3af/802.3at devices powered
Supports POE power up to 30.8 watts for each POE port
Each port supports 52V DC power to POE powered device
250/300/400-watt POE budget
Auto detects powered device
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode
Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
IEEE 802.1Q VLAN transparency
Hardware DIP switch for Standard, VLAN and Trunking, can control 24 POE ports VLAN and make the uplink Ports working in trunking mode.
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
10 KB Jumbo frames support

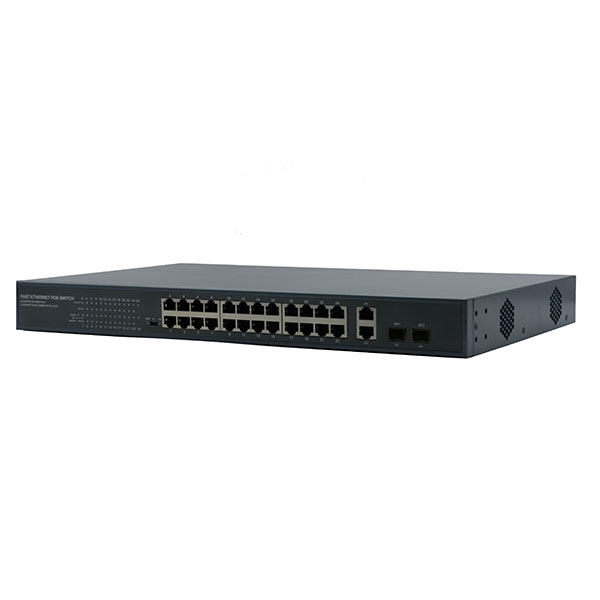

Front panel
Item | Description | |
| Model | HC-724EP-2G2SFP | |
| Power Supply | Power Supply Mode | Mains on load |
| Voltage Range | AC 100~240V | |
| Power Consumption | The device<15W, POE power supply<250/300/400W | |
| Network Port Parameter | Network Ports | 1~24 Ports: 10/100Mbps Ethernet port, adaptive control UPLINK Ethernet port: 10/100/1000Mbps Ethernet port Uplink SFP:1.25Gbps |
| Transmission Distance | 1~24 Ethernet Port:0~100m 2 Ethernet Uplink Port:0~100m 2 SFP: According to different SFP | |
| Transmission Media | 1~24 Ethernet Port:Cat5e/6 standard UTP cable, 2 Ethernet Uplink Port:Cat5e/6 standard UTP cable 2 SFP: LC interface optical fiber | |
| POE Agreement | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus | |
| POE Power Supply Mode | End-span method | |
| POE Power Supply Wattage | Each port≤30W,Whole device<250/300/400W | |
| Network Switch Specification | Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure |
| Swap Mode | Store-and- forward | |
| Switch Capacity | 56Gbps | |
| MAC Address List | 8K | |
| Status Indicators | Power Indicator Light | One power light (green) |
| Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data | |
| Uplink Port | LED (Green): On, port is link on; Off, port is link down; | |
| POE Indicator | 1~24 POE indicator light | |
| POE Network Port LED | 1~24 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
| Switch | Switch | ON: Ports 1 to 24 in port vlan OFF: default mode. |
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
| Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |
| Operating Environment | Working Temperature | -10ºC~55ºC |
| Storage Temperature | -40ºC-85ºC | |
| Humidity(non-congeal) | 5~95% | |
| Mechanical Attributes | Dimensions (L*W*H) | 442mm×224mm×44.5mm |
| Color | Black | |
| Weight | 4.5kg | |
| Reliability | Mean time between failures (MTBF) | >50000h |
