Features:

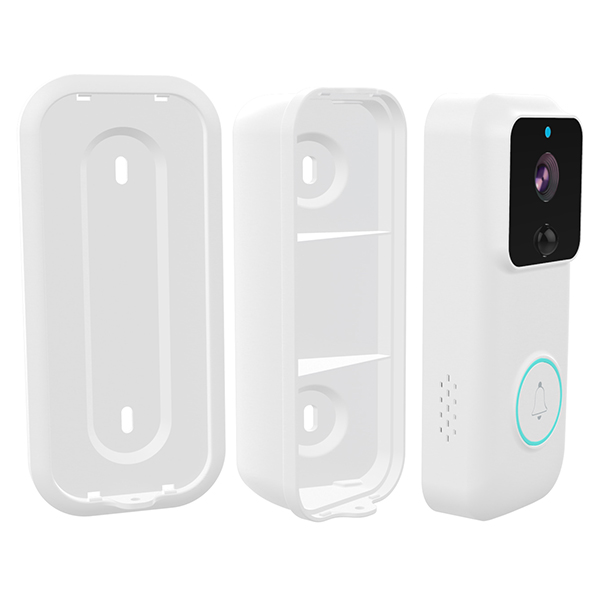

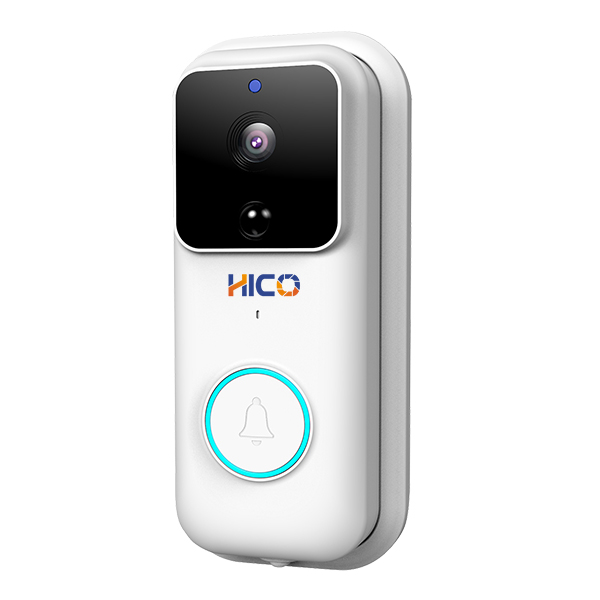

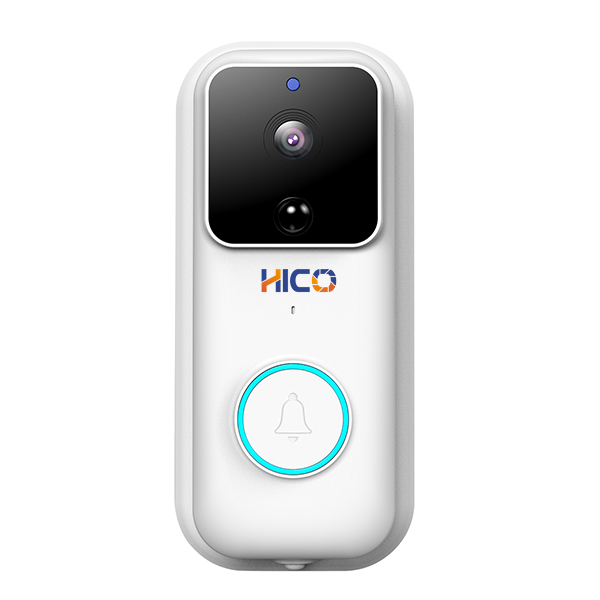

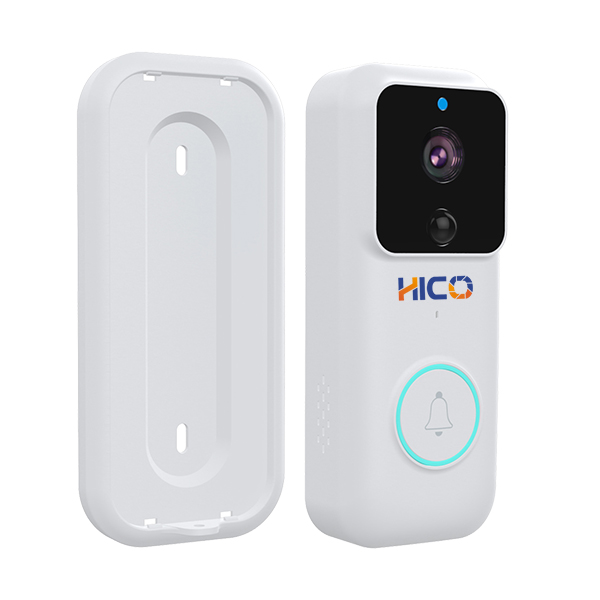

Wireless WIFI Smart Doorbell Camera
1.7mm Wide Angle (166°) Lens
IR LED: F8*6pcs, IR Range: 8 M
PIR Motion Detection, WDR
Support SD Card (Max 32GB)
WIFI Auto Match, Phone App For iPhone and Android
Push Alarm to Smart Phone, Two-way Audio
Support Cloud Storage
PSU: AC/DC 8-24V; 2x 18650 Battery

sales@hicotek.com
  • Specification
  • Details
  • Drawing
  • Enquiry
  • Recommend

Model NO.

 WIP-HADB60M10

 WIP-HADB60M20

Chipset

Image Sensor

1/4”OmniVision

1/2.8" Sony CMOS

Main processor

Hi3518E

HI3516C

Resolution

720P

1080P

Effective Pixels

 1280(H)*720(V)

  1920(H)*1080(V)

Compression

H.264/JPEG/AVI/MJPEG

H.264/JPEG/AVI/ MJPEG

TV System

PAL/NTSC Adjustable

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio

≥52dB

Scanning System

Progressive

Lens

Focus Length

1.7mm (166°Wide-angle)

1.7mm (166°Wide-angle)

Focus Control

Fixed

Fixed

Lens Type

Fixed

Fixed

Pixels

2MP

2MP

Night Vision

Infrared LED

IR LED: F8*6pcs   (850nm)

Infrared Distance

8M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

WIFI

2.4GHz WiFi (IEEE 802.11 b/g/n)

P2P

YES

Red LED Blink

Power OK, Waiting for WiFi Connection

Blue & Red Blink

WiFi Setting Succeed, Waitting for APP   Connection

Blue LED Blink

Power & Network OK, Device in Working   Status

LED OFF

No Power / StandBy Mode

OS Require

iOS (V10.0 or Above) or Android (V5.0 or   Above)

SD Card

                                                        Support Max 32GB TF-card

Cloud Storage

                                                                    YES

Audio Input

Internal Microphone (38dB)

Pickup Range

5 Meters

Audio Output

Internal Speaker (38dB)

Audio Type

Two-way Audio with Noise Cancellation

Video Quality

1280*720@25fps

1920*1080@18fps

Video Mode

Manual Video; Alarm Video

Smart Phone

iPhone, Android

Camera Features

Day/Night

Color/ B&W (Auto ICR )

BLC

Support

Support

AGC

Support

 Support

WDR

Support

Motion Detection

Smart PIR Sensor (Sensitivity Editable)

Device Wakeup Time

Within 600ms

General

Housing

Plastic for Indoor Use

Bracket

YES

Operation Temperature

-20 ~ +55 RH95% Max

Storage Temperature

-25 ~ +60 RH95% Max

Power Type

Hardwire AC/DC 8V-24V or Rechargeable 18650   Battery

Consumption

Working Mode: 170mA Standby Mode: 200μA

Dimension

63(L)*34.5(W)*139(H)mm

Weight

450g
