Features:

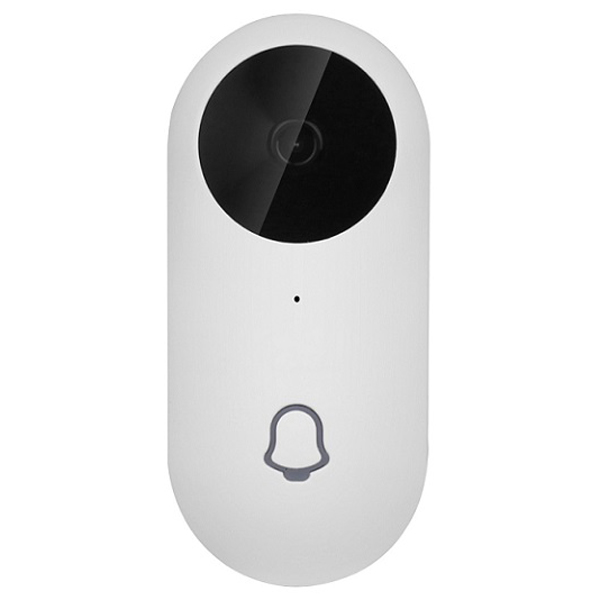

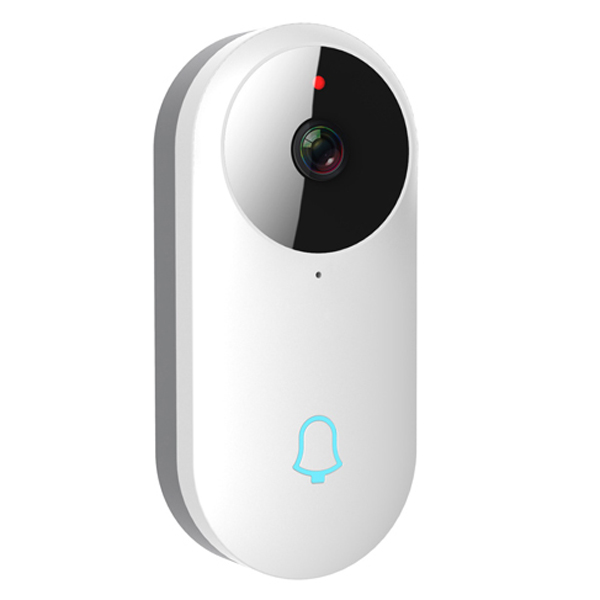

Waterproof Wireless WIFI Smart Doorbell Camera
1.8mm Wide Angle (160°) Lens
PIR Motion Detection, WDR
Support Cloud Storage without Charge For Ever
WIFI Auto Match, Phone App For iPhone and Android
Push Alarm to Smart Phone, Two-way Audio
PSU: 1x 18650 Battery; DC 5V;
Water Resistant Rate:IP67
Model NO. | WIP-HADB40M13 | WIP-HADB40M20 |
Chipset | ||
Image Sensor | 1/2.7“ SC1235 | 1/2.8” Sony |
Hi3518E | HI3516C | |
Resolution | 960P | 1080P |
Effective Pixels | 1280(H)*960(V) | 1920(H)*1080(V) |
Compression | H.264/JPEG/AVI/MJPEG | H.264/JPEG/AVI/ MJPEG |
TV System | PAL/NTSC Adjustable | |
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |
S/N Ratio | ≥52Db | |
Scanning System | Progressive | |
Lens | ||
Focus Length | 1.8mm (160°Wide-angle) | 1.8mm (160°Wide-angle) |
Focus Control | Fixed | Fixed |
Lens Type | Fixed | Fixed |
Pixels | 2MP | 2MP |
Night Vision | ||
Infrared LED | N/A | |
Infrared Distance | 0.01 Lux | |
IR Status | N/A | |
IR Power On | N/A | |
Network | ||
WIFI | 2.4GHz WiFi (IEEE 802.11 b/g/n) | |
P2P | YES | |
Red LED Blink | Power OK, Waiting for WiFi Connection | |
Blue & Red Blink | WiFi Setting Succeed, Waitting for APP Connection | |
Blue LED Blink | Power & Network OK, Device in Working Status | |
LED OFF | No Power / StandBy Mode | |
OS Require | Ios (V10.0 or Above) or Android (V5.0 or Above) | |
SD Card | N/A | |
Cloud Storage | Yes, No Charge For ever | |
Audio Input | Internal Microphone (38dB) | |
Pickup Range | 5 Meters | |
Audio Output | Internal Speaker (38dB) | |
Audio Type | Two-way Audio with Noise Cancellation | |
Video Quality | 1280*960@15fps | 1920*1080@25fps |
Video Mode | Manual Video; Alarm Video | |
Smart Phone | iPhone, Android | |
Camera Features | ||
Day/Night | Color/ B&W (Auto ICR ) | |
BLC | Support | |
AGC | Support | Support |
WDR | Support | |
Motion Detection | Smart PIR Sensor (Sensitivity Editable) | |
Device Wakeup Time | Within 600ms | |
General | ||
Housing | IP67,Waterproof for Outdoor Use | |
Bracket | YES | |
Operation Temperature | -20℃ ~ +55℃ RH95% Max | |
Storage Temperature | -25℃ ~ +60℃ RH95% Max | |
Power Type | 1x Rechargeable 18650 Battery; Linear DC 5V | |
Consumption | Working Mode: 150mA Standby Mode: 65μA | |
Dimension | 136(L)*62(W)*30(H)mm | |
Weight | 150g |
