Chipset

Image Sensor

1/2.7" SC2235H

Main processor

HI3518E

Resolution

1080P

Effective Pixels

  1920(H)*1080(V)

Compression

H.264/JPEG/AVI/ MJPEG

TV System

Lite OS

Pan

N/A

Tilt

N/A

S/N Ratio

≥52Db

Lens

Focus Length

3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

2MP

Night Vision

Infrared LED

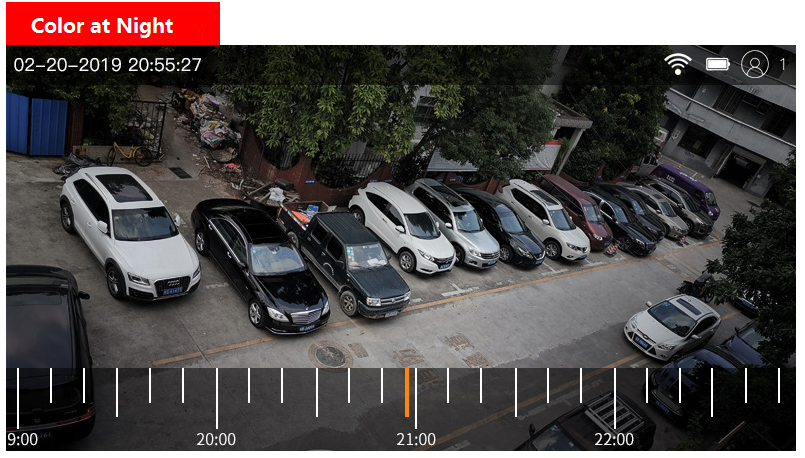

4pcs White   Led (Full Color at Night)

Infrared Distance

30M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

4G Mode

FDD-LTE,TDD-LTE,TD-SCDMA,HSPA+,HSUPA,UMTS,EVDO,EDGE,GPRS,GSM,CDMA1X

WIFI(AP Hot)

LTE WIFI Communication Mode

IE Protocol

P2P, TCP/IP, HTTP, TCP, UDP, SMTP, FTP,   DHCP, DNS, DDNS, NTP, UpnP, RTSP

Antenna

2x Strong   Antenna 1.5db

P2P

YES

SD Card

Support Max 64GB Micro SD-card

Cloud Storage

                                                                    YES

Audio Input

Internal Microphone (38dB)

Pickup Range

5 Meters

Audio Output

Internal Speaker (38dB)

Audio Type

AAC,G726,G711,MP3; Two-way Audio with Noise   Cancellation

Video Quality

1920*1080@25fps

Video Mode

Manual Video Recording; Alarm Video   Recording

Smart Phone

Android 2.3 and above; IOS7.0 and above

Camera Features

Day/Night

Color/ B&W (Auto ICR )

BLC

Support

AGC

 Support

Motion Detection

Smart PIR Sensor (Sensitivity Editable)

Panoramic Show

Analog 3D & Auto Cruise

Voice Call

YES

Remote Waking

YES

Motion Waking

YES

General

Housing

Metal    for outdoor Use, IP66 Waterproof

Bracket

YES

Operation Temperature

-20℃ ~ +55℃ RH95% Max

Storage Temperature

-25℃ ~ +60℃ RH95% Max

Power Type

4x #18650 Battery/ DC 5-8V

Dimension

195(L)*95(W)*95(H)mm

Weight

1400g
