Features:

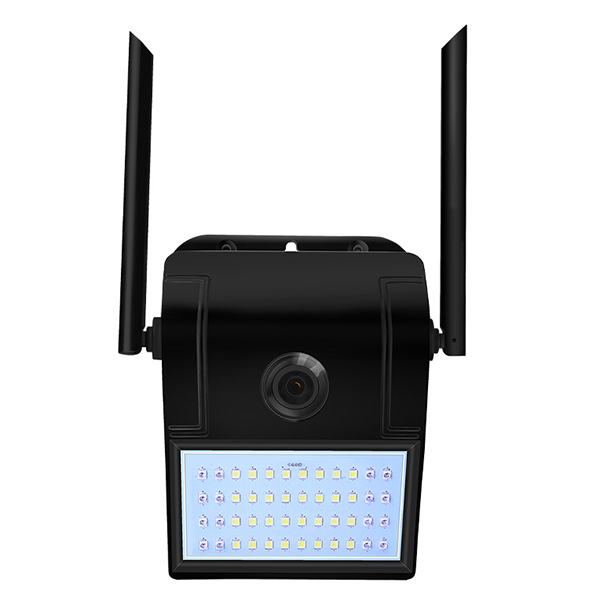

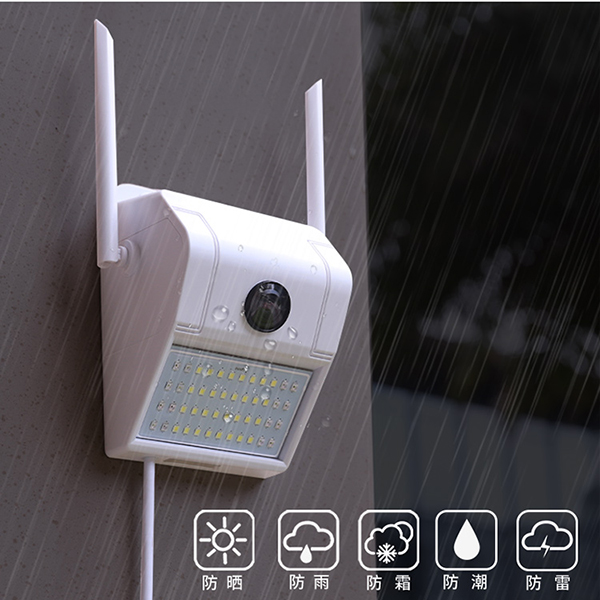

Dual Flood Light Wall Lamp WIFI Camera
Lens: 1.7mm Wide Angle (175°)
IR: 32pcs White Led + 16pcs IR Array, IR 50M
2x Strong Antenna 1.5db
RJ45 Access/Motion Detection/ Alarm
Remote Playback/ Two-way Audio
Support Max 128GB SD card
Support Cloud Storage
Phone APP/Paid/PC Use
H.265/ ONVIF 2.4

sales@hicotek.com
  • Specification
  • Details
  • Drawing
  • Enquiry
  • Recommend

Model NO.

 WIP-HBDF05M13

 WIP-HBDF05M20

Chipset

Image Sensor

1/3” SC1145

1/3" GMAX0806

Main processor

FH8810

FH8630

Resolution

960P

1080P

Effective Pixels

 1280(H)*960(V)

  1920(H)*1080(V)

Compression

H.264/JPEG/AVI/MJPEG

H.265/H.264/JPEG/AVI/ MJPEG

TV System

PAL/NTSC Adjustable

Pan

N/A

Tilt

N/A

S/N Ratio

≥52Db

Lens

Focus Length

1.7mm (175 Degree)

1.7mm (175 Degree)

Focus Control

Fixed

Fixed

Lens Type

Fixed

Fixed

Pixels

1.3MP

2MP

Night Vision

Infrared LED

32pcs White   Led + 16pcs IR Array

Infrared Distance

50M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

WIFI

2.4GHz WiFi (IEEE 802.11 b/g/n)

RJ45 Access

Yes

IE Protocol

HTTP/TCP/IP/RTSP/ONVIF

Antenna

2x Strong   Antenna 1.5db

P2P

YES

OS Require

iOS (V10.0 or Above) or Android (V5.0 or   Above)

SD Card

                                                        Support Max 128GB TF-card

Cloud Storage

                                                                    YES

Audio Input

Internal Microphone (38dB)

Pickup Range

5 Meters

Audio Output

Internal Speaker (38dB)

Audio Type

Two-way Audio with Noise Cancellation

Video Quality

1280*960@25fps

1920*1080@25fps

Video Mode

Manual Video; Alarm Video

Smart Phone

iPhone, Android

Camera Features

Day/Night

Color/ B&W (Auto ICR )

BLC

Support

Support

AGC

Support

 Support

Motion Detection

Smart PIR Sensor (Sensitivity Editable)

General

Housing

PVC for outdoor Use

Bracket

YES

Operation Temperature

-20 ~ +55 RH95% Max

Storage Temperature

-25 ~ +60 RH95% Max

Power Type

DC 12V 1000mA

Dimension

120(L)*130(W)*85(H)mm

Weight

1100g
