Features:

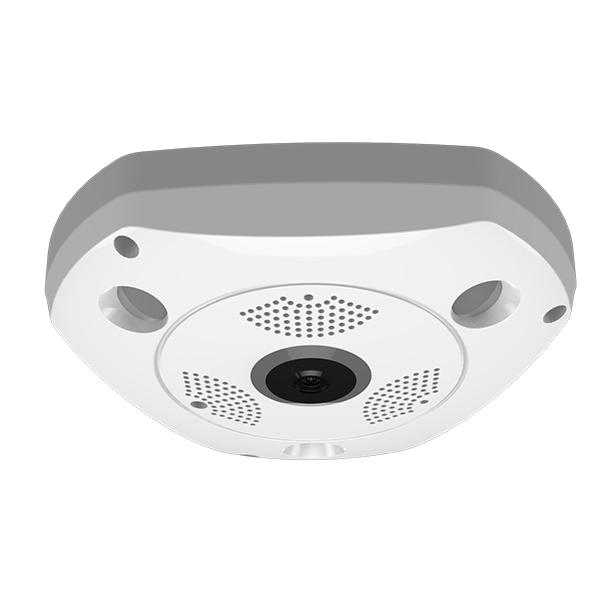

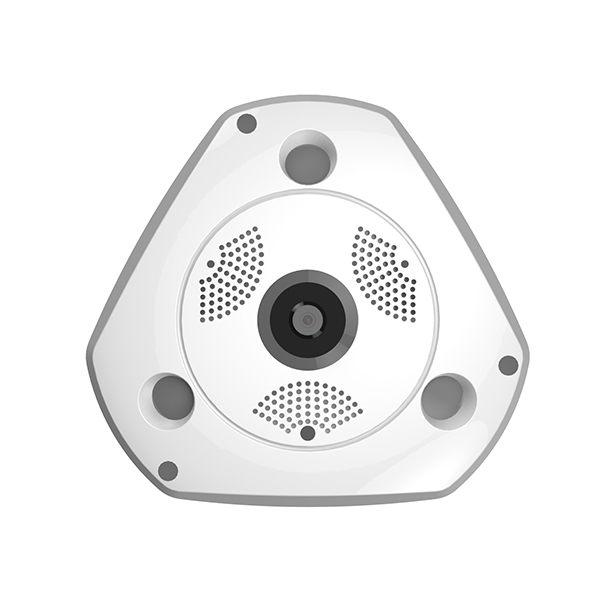

360 Degree VR Panoramic WIFI Camera
Lens: 1.14mm Fisheye
IR:3pcs IR Array, IR 5-10M
Support two-way audio
Wireless Connection Router
2/4/360 Roall Split Screen
Support Electronic PTZ
Support 64G TF card
App for Iphone &Android
PSU: DC12V 1000 mA
Color: White

sales@hicotek.com
  • Specification
  • Details
  • Drawing
  • Enquiry
  • Recommend

Model NO.

 WIP-HFIF03M20

 WIP-HFIF03M30

Chipset

Image Sensor

1/3” HI3518E

1/2.7" HE7473

Main processor

SC2235

MC323E

Resolution

2 MP

3 MP

Effective Pixels

1920(H)*1080 (V)

  2304(H)*1536(V)

Compression

H.265/H.264/JPEG/AVI/MJPEG

H.265/H.264/JPEG/AVI/ MJPEG

TV System

PAL/NTSC Adjustable

Electronic   PTZ

Yes

Lens

Focus Length

1.14mm Fisheye

1.14mm Fisheye

Focus Control

Fixed

Fixed

Lens Type

Fixed

Fixed

Pixels

2 MP

3 MP

Night Vision

Infrared LED

IR LED: 3pcs   IR Array

Infrared Distance

10M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

WIFI

2.4GHz WiFi (IEEE 802.11 b/g/n)

Wire RJ45 Cable

Optional

P2P

YES

OS Require

iOS (V10.0 or Above) or Android (V5.0 or   Above)

SD Card

                                                        Support Max 128GB TF-card

Audio Input

Internal Microphone (38dB)

Pickup Range

5 Meters

Audio Output

Internal Speaker (38dB)

Audio Type

Two-way Audio with Noise Cancellation

Video Quality

1920*1080@25fps

2304*1536@25fps

Video Mode

360° 3D VR Mode

Split   Screen

1/2/4

Electronic   PTZ

Yes

Smart Phone

iPhone, Android

Camera Features

Day/Night

Color/ B&W (Auto ICR )

BLC

Support

Support

AGC

Support

 Support

Motion Detection

Smart PIR Sensor (Sensitivity Editable)

General

Housing

Plastic for Indoor Use

Bracket

YES

Operation Temperature

-20 ~ +55 RH95% Max

Storage Temperature

-25 ~ +60 RH95% Max

Power Type

DC12V 1000mA

Dimension

166(L)*153(W)*44(H)mm

Weight

900g
