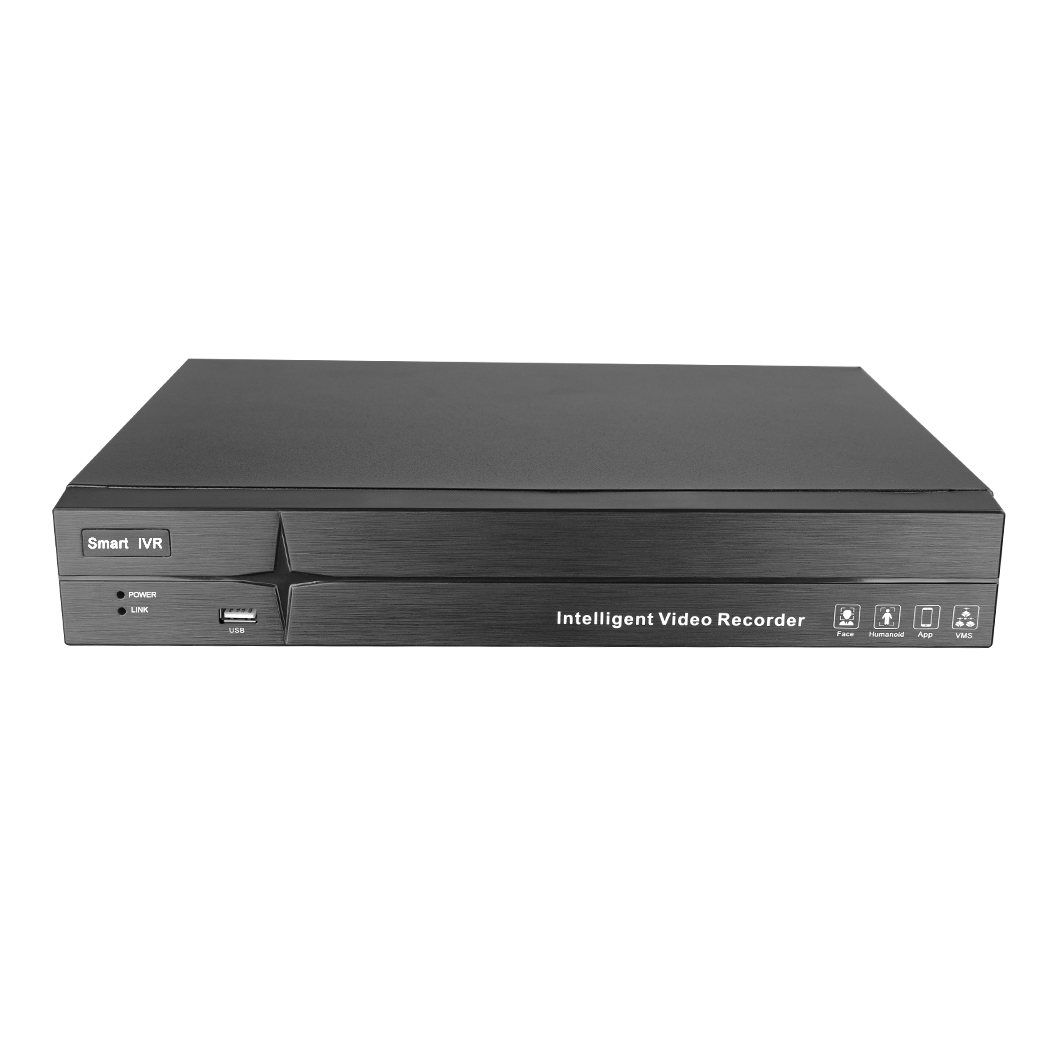

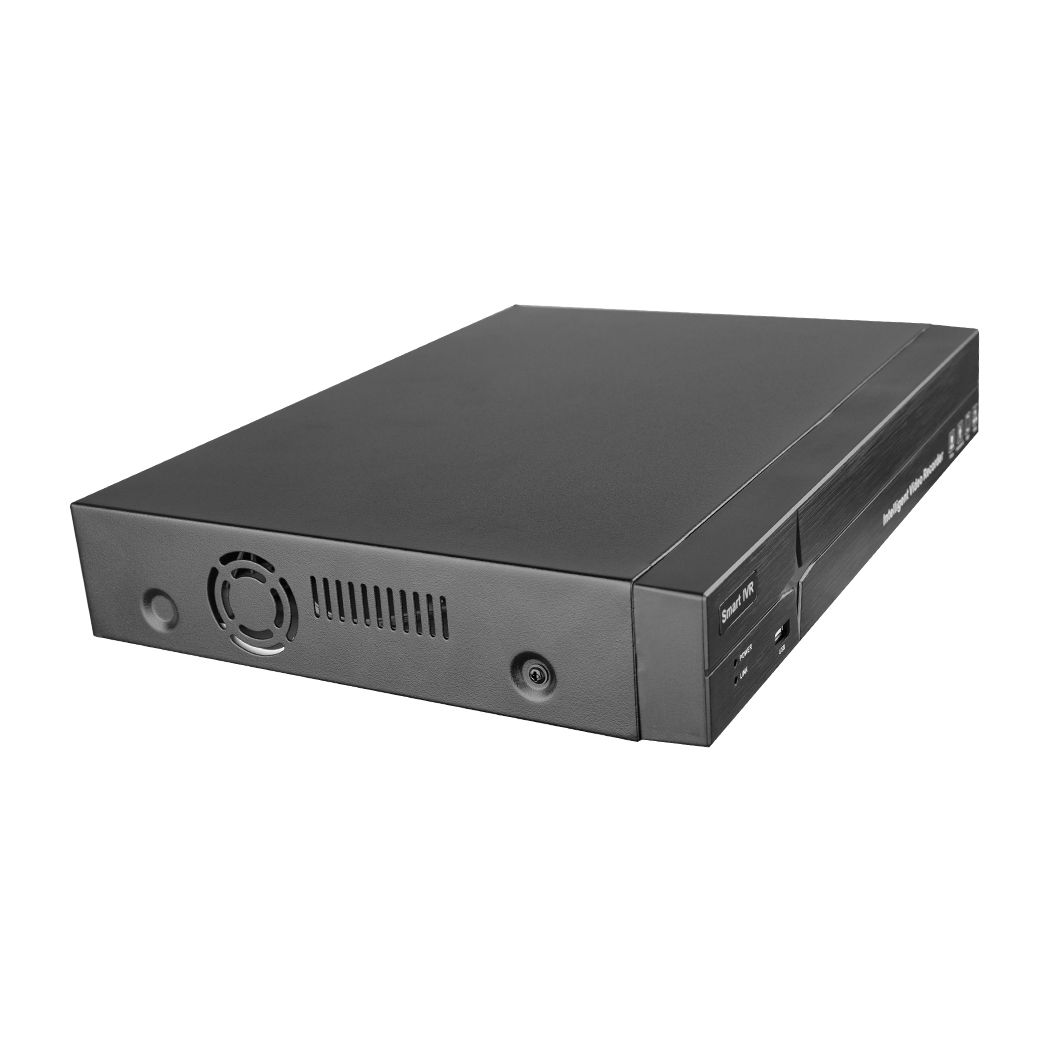

NVR System

Type

16CH NVR with 4 POE ports

Compression Method

H.265+/ H.265/ H.264

Operating System

Embedded LINUX

HDD

1 SATA, MAX 8TB

Intelligent Function

Support   Smart Analysis with Smart IPC （Line Crossing, Area Detection, Object   Left/Lost, Target Count)

Display & Recording

Video Preview

16CH IPC

Preview Split

1/4/9/16 Screen

Input Bandwidth

64Mbs

Playback

4CH@25fps

1CH 4K@30fps

Search Mode

Time, Date, Alarm, Motion Detection, Exact Search

Playback Mode

Normal Play, Fast Forward, Fast Rewind,

Frame by Frame, Zoom In /Out

Video | Alarm | Audio

Video Output

1x HDMI(3840x2160),1x VGA(1920x1080)

Audio IN/OUT

1:1 Network   Video: Network Audio

Alarm IN/OUT

N/A

Motion Detection

YES

Trigger Events

Recording,  Email, Screen tips, Buzzer

Email Alarm

Send Image   to The Designated E-mail

Network

Interface

RJ45 Port / 10M / 100M  Adaptive

IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP

Protocol

UPnP (Plug & Play), SNMP (Simple Network Management),   NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service),   NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet   access), DHCP (automatically obtain IP address)

VMS Software

Support

Cloud Support

iCloud Software One‐click Online; Support IE Firefox

Google Chrome Mac OS Safari

Language

18 Kinds of Languages

Smart Phone

Iphone, Ipad, Android, Android Pad

PC System

Supports Windows 7 and Above Computer Client, Supports   Apple MAC Computer Client

POE Port

4CH POE Ports

General

Voltage

DC 52V /1.5A

USB Port

2 USB2.0

PTZ

Control PTZ Device by Network

Size

220(W) ×43(H) ×260(L)mm/Single; 10pcs/Carton

Weight

1.5 Kgs (Without HDD)
