Chipset

Image Sensor

SONY IMX307

SONY IMX335

/

SONY IMX415

Main processor

MSC335

MSC30KQ

/

MSC328Q

Resolution

1080P

5MP

/

8MP

Effective Pixels

  1920(H)*1080(V)

2592(H)*1944(V)

/

3840(H)*2160(V)

Compression

H.264/H.265/ JPEG/AVI/MJPEG

TV System

PAL/NTSC Adjustable

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Lens

Focus Length

3.6/2.8/6mm

3.6/2.8/6mm

/

3.6/2.8/6mm

Focus Control

Fixed

Fixed

/

Fixed

Lens Type

Fixed

Fixed

/

Fixed

Pixels

2MP

5MP

/

8MP

Night Vision

Infrared LED

                                                                                      IR LED: 18pcs SMD

Infrared Distance

25M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

YES

WIFI

N/A

TF Card Slot

N/A

Video Bit Rate

 Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps)

Video Type

Complex Stream/ Video Stream

Audio Compression

G.711U (Optional)

Main Stream 1

1920*1080@30fps

2592*1944@25fps

/

3840*2160@20fps

Main Stream 2

3MP@25fps

2048*1520@30fps

/

3072*1728@25fps

Main Stream 3

720P/D1@30fps

1920*1080@30fps

/

2592*1944/2560*1440/1080P@30fps

Sub Stream 1

640*360@25fps

720*480@30fps

/

720*480@30fps

Sub Stream 2

VGA/D1/CIF@25fps

640*360@30fps

/

640*360@30fps

Tri Stream

1920*1080@30fps

2592*1944@25fps

/

3840*2160@20fps

IE Brower

IE8-11, Google Chrome, Firefox, Safari, Mac Safari

Smart Phone

i-Phone, iPad, Android, Android Pad

Intelligent Analysis

Human Detection, motion detection

Human Detection,Vehicle Detection, motion detection

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)

Corridor Pattern

Support

Defog  Mode

Support

BLC

Support

HDR

Support

WDR

Support

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Russian, Ukrainian, German,  Italian, Turkish, Hrvatski, Portuguese, Polski, Korean, Japanese,  Arabic

General

Housing

Metal ,IP66

Anti-cut Bracket

YES

IR Cut Filter

YES

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 600mA

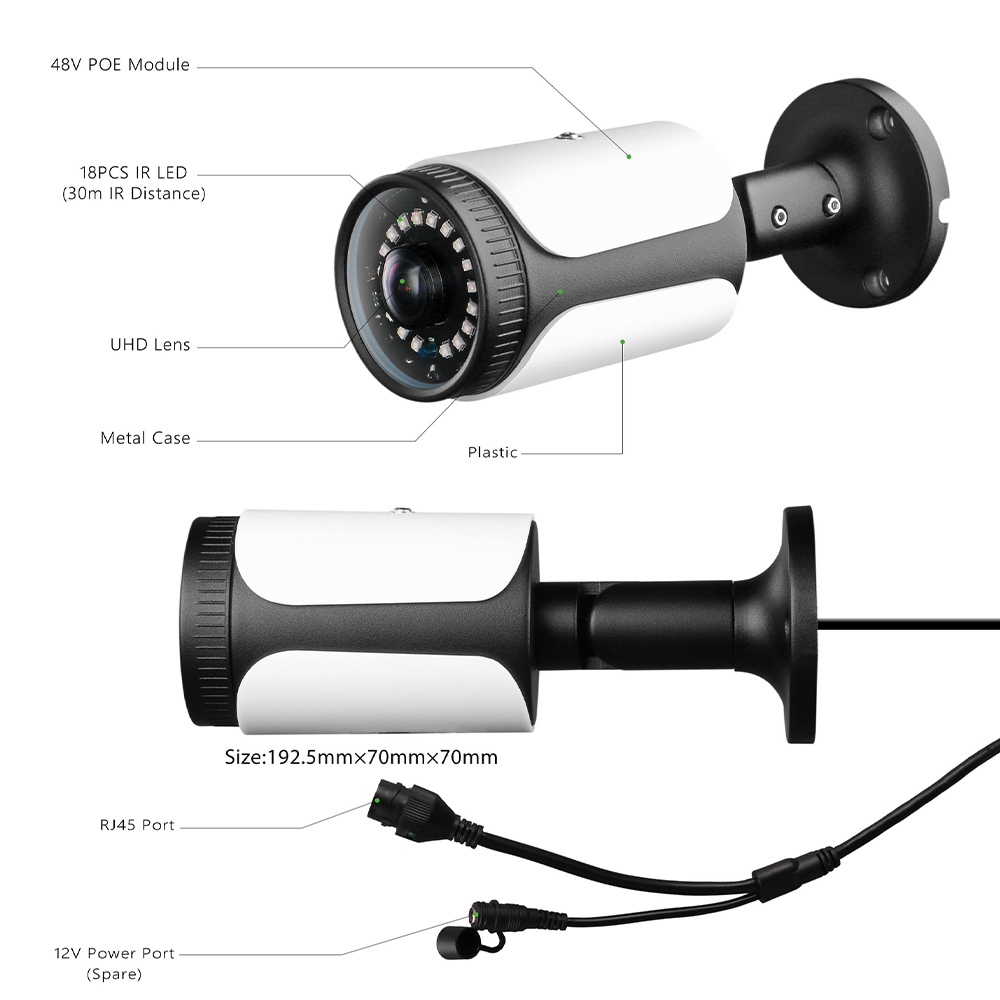

Dimension

68(W)*68(H)*192(L)mm

Weight

510g
