Features:
304 Stainless Steel IP67 Waterproof Explosion-Proof POE Camera
4mm Fixed Lens
IR LED: 18pcs SMD
20M IR Range
ONVIF 2.4
Model NO. | IPC-HEPF01M20SM | IPC-HEPF01M50SM | IPC-HEPF01M60GM | IPC-HEPF01M80SM | ||||
Chipset | ||||||||
Image Sensor | SONY IMX307 | SONY IMX335 | GC5603 | SONY IMX415 | ||||
Main processor | MSC335 | MSC30KQ | MSC30KD | MSC328Q | ||||
Resolution | 1080P | 5MP | 6MP | 8MP | ||||
Effective Pixels | 1920(H)*1080(V) | 2592(H)*1944(V) | 3072(H)*2048(V) | 3840(H)*2160(V) | ||||
Compression | H.264/H.265/ JPEG/AVI/MJPEG | |||||||
TV System | PAL/NTSC Adjustable | |||||||
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |||||||
S/N Ratio | ≥52dB | |||||||
Scanning System | Progressive | |||||||
Video Output | Network | |||||||
Lens | ||||||||
Focus Length | 4mm | 4mm | 4mm | 4mm | ||||
Focus Control | Fixed | Fixed | Fixed | Fixed | ||||
Lens Type | Fixed | Fixed | Fixed | Fixed | ||||
Pixels | 2MP | 5MP | 6MP | 8MP | ||||
Night Vision | ||||||||
Infrared LED | IR LED: 18pcs SMD | |||||||
Infrared Distance | 20M | |||||||
IR Status | Under 10 Lux By CDS | |||||||
IR Power On | CDS Auto Control | |||||||
Network | ||||||||

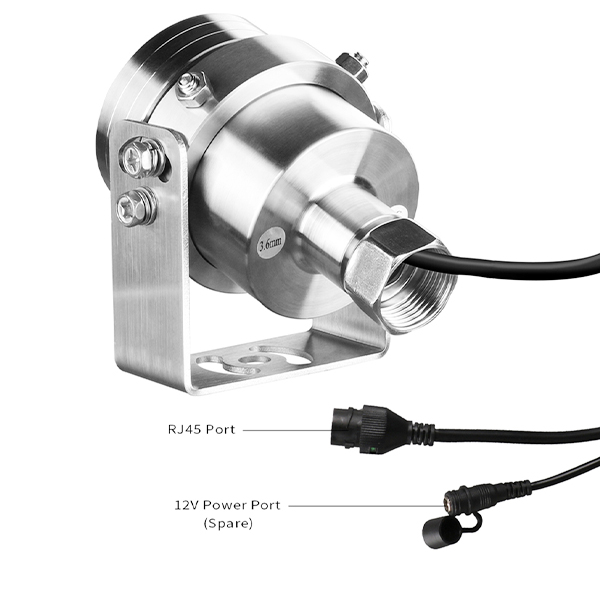

Ethernet | RJ-45 (10/100Base-T) | |||||||
Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | |||||||
ONVIF | Support ONVIF 2.4 | |||||||
P2P | YES, Support QR Code | |||||||
POE | YES | |||||||
WIFI | N/A | |||||||
TF Card | N/A | |||||||
Video Bit Rate | Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps) | |||||||
Video Type | Complex Stream/ Video Stream | |||||||
Audio Compression | G.711U (Optional) | |||||||
Main Stream 1 | 1920*1080@30fps | 2592*1944@25fps | 3072*2048@25fps | 3840*2160@20fps | ||||
Main Stream 2 | 3MP@25fps | 2048*1520@30fps | 2560×1440/2304×1296@30fps | 3072*1728@25fps | ||||
Main Stream 3 | 720P/D1@30fps | 1920*1080@30fps | 1920×1080/1280×720@60fps | 2592*1944/2560*1440/1080P@30fps | ||||
Sub Stream 1 | 640*360@25fps | 720*480@30fps | 720*480@30fps | 720*480@30fps | ||||
Sub Stream 2 | VGA/D1/CIF@25fps | 640*360@30fps | 640*360/VGA/D1@30fps | 640*360@30fps | ||||
Sub Stream 3 | / | / | / | |||||
Tri Stream | 1920*1080@30fps | 2592*1944@25fps | 3072*2048@25fps | 3840*2160@20fps | ||||
IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | |||||||
Smart Phone | i-Phone, iPad, Android, Android Pad | |||||||
Intelligent Analysis | Human Detection | Human Detection,Vehicle Detection | Human Detection,Vehicle Detection | Human Detection,Vehicle Detection | ||||
Day/Night | Color/ B&W (IR-CUT ) | |||||||
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | |||||||
Corridor Pattern | Support | |||||||
Defog Mode | Support | |||||||
BLC | Support | |||||||
HDR | Support | |||||||
WDR | Support | |||||||
Motion Detection | Support | |||||||
Privacy Masking | 3 Rectangular Zone | |||||||
Recording Mode | NVR/NAS/CMS/Web | |||||||
Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands | |||||||
General | ||||||||

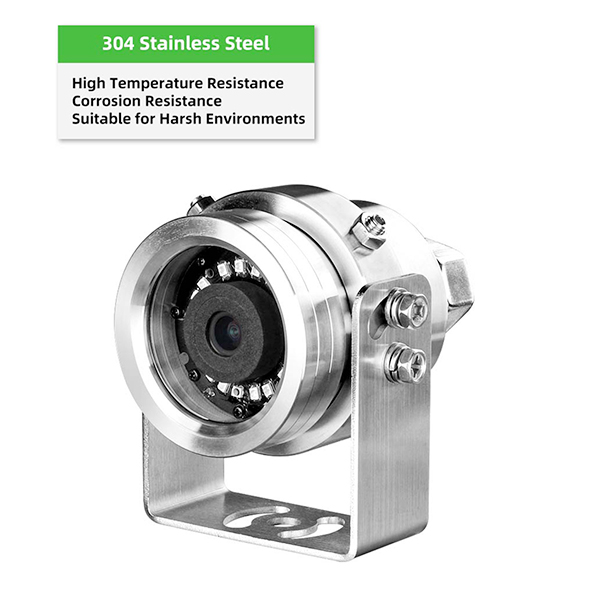

Housing | 304 Stainless Steel ,IP67 | |||||||
Anti-cut Bracket | YES | |||||||
IR Cut Filter | YES | |||||||
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |||||||
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||||||
Power Source | DC12V±10%, 600mA | |||||||

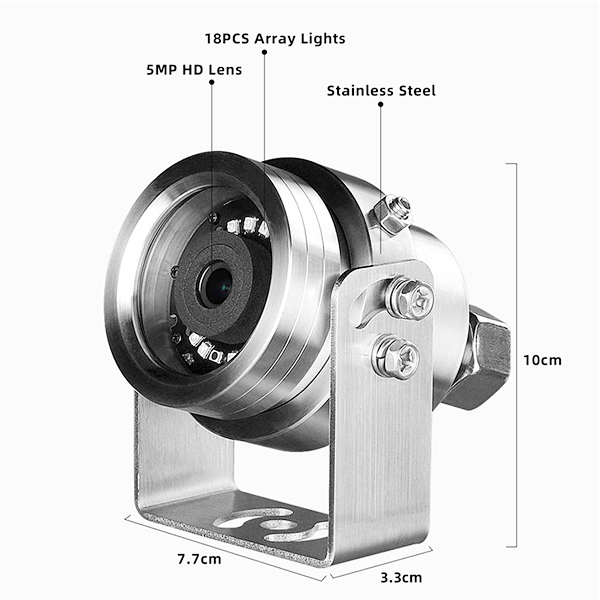

Dimension | 77(W)*100(H)mm | |||||||
Weight | 1200g |
