Chipset

Image Sensor

////

SONY IMX335

////

SONY IMX415

Main processor

//

MSC30KQ

//

MSC328Q

Resolution

/

5MP

/

8MP

Effective Pixels

/

2592(H)*1944(V)

/

3840(H)*2160(V)

Compression

H.264/H.265/ JPEG/AVI/MJPEG

TV System

PAL/NTSC Adjustable

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Lens

Focus Length

////

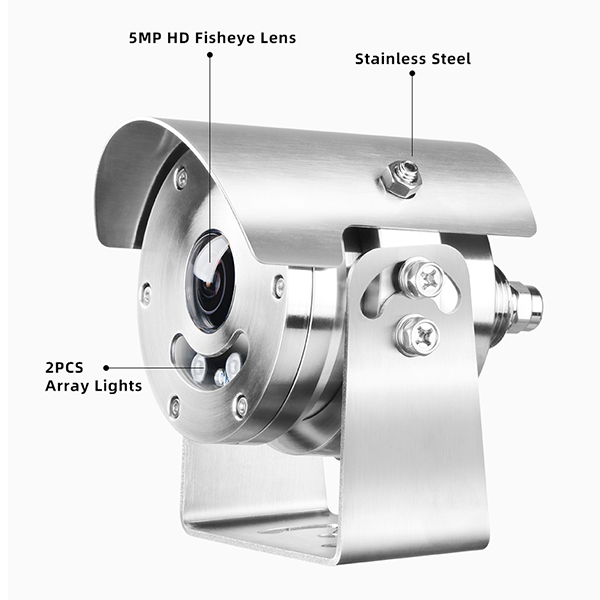

1.7mm fisheye

////

1.7mm fisheye

Focus Control

//

Fixed

//

Fixed

Lens Type

/

Fixed

/

Fixed

Pixels

/

5MP

/

8MP

Night Vision

Infrared LED

IR LED: 2 pcs IR Array

Infrared Distance

20M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

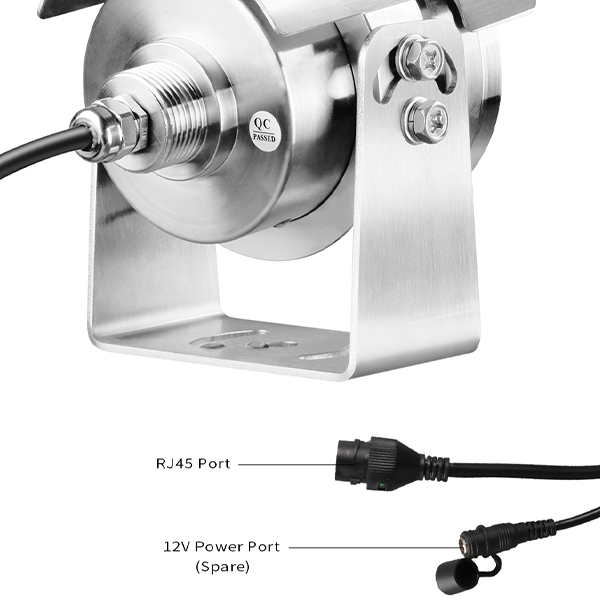

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

YES

WIFI

N/A

TF Card

N/A

Video Bit Rate

 Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps)

Video Type

Complex Stream/ Video Stream

Audio Compression

G.711U (Optional)

Main Stream 1

////

2592*1944@25fps

/

3840*2160@20fps

Main Stream 2

//

2048*1520@30fps

/

3072*1728@25fps

Main Stream 3

/

1920*1080@30fps

/

2592*1944/2560*1440/1080P@30fps

Sub Stream 1

/

720*480@30fps

/

720*480@30fps

Sub Stream 2

////

640*360@30fps

/

640*360@30fps

Sub Stream 3

/

/

/

Tri Stream

/

2592*1944@25fps

/

3840*2160@20fps

IE Brower

IE8-11, Google Chrome, Firefox, Safari, Mac Safari

Smart Phone

i-Phone, iPad, Android, Android Pad

Intelligent Analysis

Human Detection

Human Detection,Vehicle Detection

Human Detection,Vehicle Detection

Human Detection,Vehicle Detection

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)

Corridor Pattern

Support

Defog  Mode

Support

BLC

Support

HDR

Support

WDR

Support

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands

General

Housing

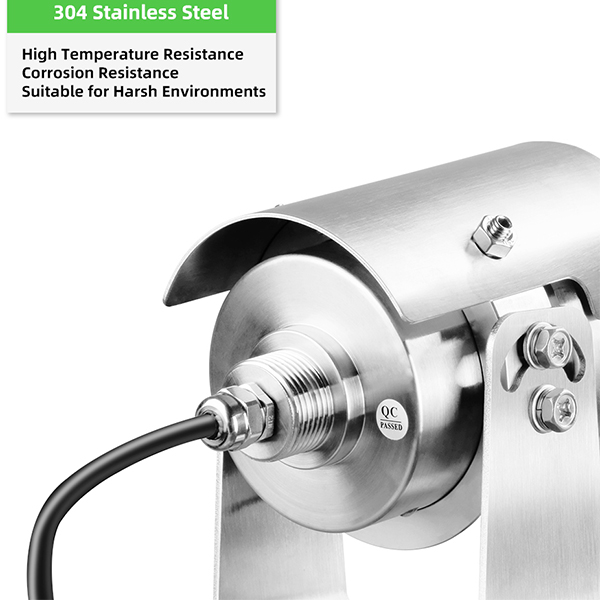

304 Stainless Steel ,IP67

Anti-cut Bracket

YES

IR Cut Filter

YES

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 600mA

Dimension

79(W)*110(H)mm

Weight

1400g
