Features:

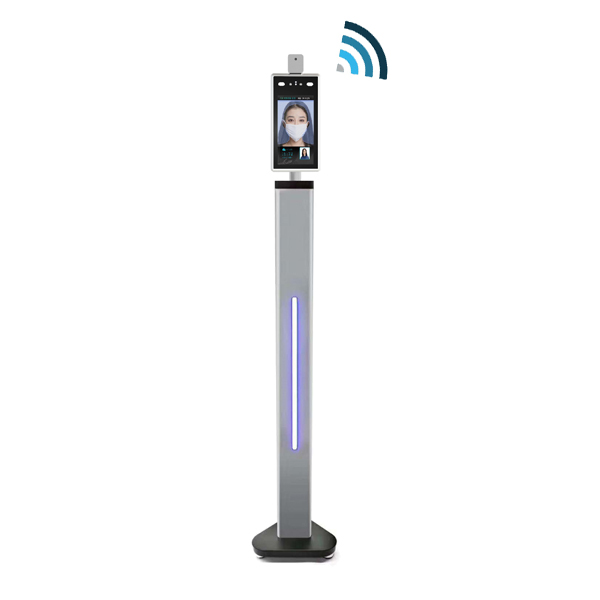

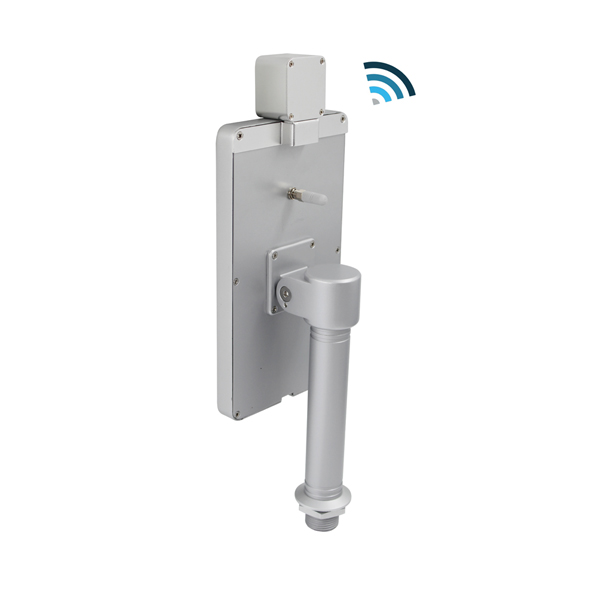

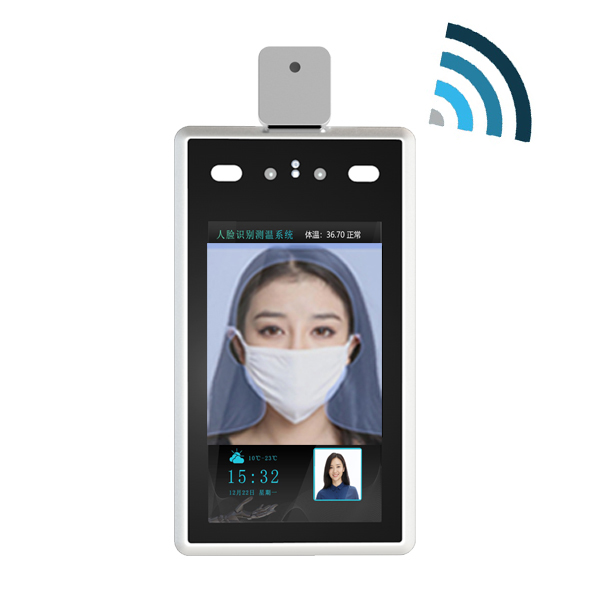

7” WIFI + LAN Face Recognition Temperature Thermal Camera
Built-in Non-touch High-precision Thermal Imaging Module
Support Live Body Detection Technology
Temperature Detection Range 30℃~45℃,Precision±0.3℃
Support Body Temperature & Mask Detection
Support 24,400 Face Database
300 MS Fast Identification
Local Alarm Output after Abnormal Temperature
Support Directly Driving Access/Gates Control Protocol
Support More than 10 of Language: English/Spanish/Italian/French/
German/Portuguese/Russian/Japanese/Korean/Chinese
FRC-HPFT10M20W | |
Products | Face Recognition &Temperature Detection AI Smart Camera With 7 Inch Led Screen |
Chipset | |
Mainboard | HI3516DV300 |
System | Linux Operation System |
RAM | 16G EMMC |
Binocular Tech | Support Live Detection |
Effect Pixel | 2 Megapixel, 1920x1080@30FPS |
Character overlay | Support channel name, date and time overlay, adjustable overlay position |
S/N Ratio | ≥50dB(AGC OFF) |
Wide Dynamic Range | >120dB |
Digital Noise Reduction | 3D Digital Noise Reduction |
Lens | 4.5mm |
View Angle | 85 Degree |
Multi-Language | English/Spanish/Italian/French/German/ Portuguese/ Russian/Japanese/Korean/Chinese/More… |
Video and Audio Parameters | |
Video compression | H.265 Main Profile / H.264 High profile / M-JPEG |
Video Resolution | Main stream 1920×1080/1280×960/1280x720/720x576 |
Sub stream 640x480、352x288、320x240、176x144 | |
MJPEG 1920x1080、1280x720、closed | |
Video Bit Rate | （CBR or VBR), Bitstream setting range：32Kbps~10Mbps |
Exposure Mode | Program mode (customizable shutter interval), shutter mode（1/5 - 1/20,000s）support for slow shutter |
White Balance | Auto, indoor, outdoor, sodium lamp mode, manual |
Audio Output | Built-in 2ch Audio Output |
Audio Compression Format | G.711/PCM |
Audio Mount | MIC |
Voice Alarm | Support |
Face Recognition | |
1.2~2.2M, Angle Adjustable | |
Recognition Distance | 0.5~2M |
View Angle | Vertical ±40° |
Recognition Speed | ≤500ms |
Number of face Bases | 24400PCS and 100000 Records |
Temperature Measurement | |
30~45℃, Precision： | |
Accuracy | ±0.3℃ |
Detection Distance | 0.3~0.8M |
Live Detection | |
Mask Detection | Support |
Network parameters | |
Network Interface | 1 RJ45 10M/100M Adaptive Ethernet port |
Network Protocol | IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS, PPPOE, DDNS, FTP |
Access Standard | ONVIF |
Wiegand Port | Input/Output 26 and 34 |
Switch | 1ch relay output |
SD card | Up to 128G |
USB Interface | USB 2.0/3.0 |
WIFI | Support 2.4G Hz |
Phone APP | Support |
General Parameters | |
Shell | High Quality Metal Shell |
HD LCD Display | 7 inch |
Power Supply | DC12V |
Power Consumption | 20W |
Working Temperature | -10℃~50℃ |
Working Humidity | 0%-90% RH |
Waterproof | IP66 |
LED Light | 2pcs Warm-White Leds |
Day &Night Mode | Full Color |
Light Distance | 1~3M |
Min Lux | 0.001Lux@F1.2 at Color Mode |
Dimensions | 266(L)*123.5(W)*45.5(H)mm |
Device Weight | 1000g |
Bracket | Ceiling / Mounting/Stand Optional |
