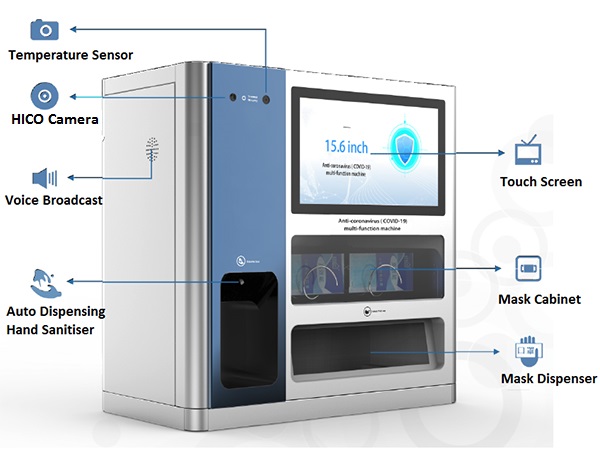

Features:

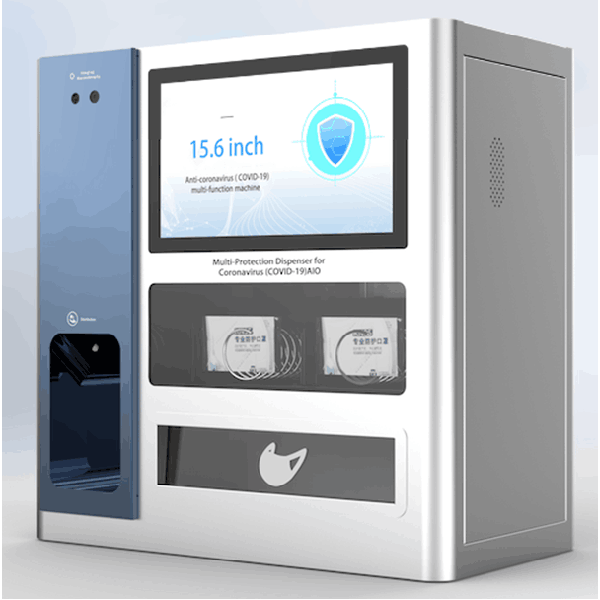

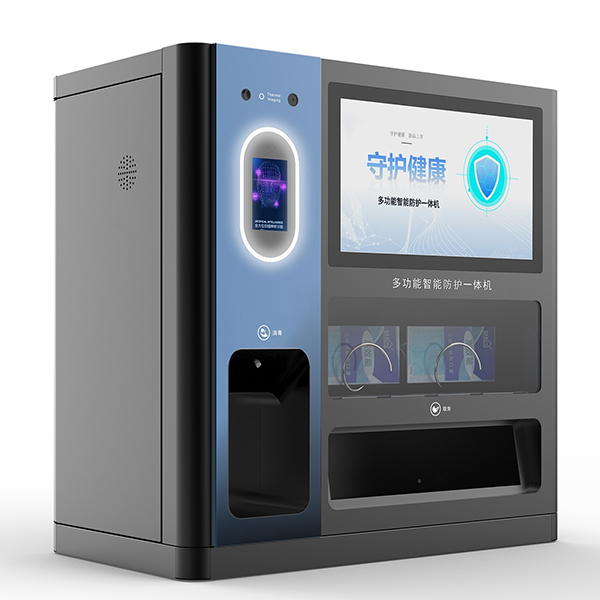

New-design Multi-Protection Dispenser
Facial Recognition & Temperature Measurement
High Accurate Thermal Infrared Technology
15.6" Human-Machine Interactive Display
Support Multimedia advertising in Pic or Video
Auto-Inductive Dispensing Hand Sanitizer
Mask Cabinet and Load off for Users
Support RJ45 / WIFI/ 4G Connection
Time Attendance Function (Optional)
Support English/Spanish/French/Chinese
MPD-HPFT02M20G | |
Products | HICOTEK new Multi-Protection Dispenser |
Network Parameters | |
Main Board | RK3288 / Quad-core/ Main frequency 1.8GHz |
Running Memory | 2G |
Internal Storage | 8GB |
External Storage | 16G |
Decoding Resolution | Max 1080P |
Operating System | Android 5.1(or above) |
Internet | Support Ethernet and WiFi |
3G/4G | Support full network Mini PCI-E slot |
USB Ports | 2 |
Ethernet Port | RJ45, Support 10M/100M Adaptive Ethernet |
S/N Ratio | ≥60dB(AGC OFF) |
Digital Noise Reduction | 3D Digital Noise Reduction |
Multi-Language | English/Spanish/French/Chinese…. |
Display Parameters | |
Screen Size | 15.6” |
Effect Pixel | 2MP; 1920(H) x 1080(V) |
Backlight Type | Warm Led |
Brightness | 220cd/㎡ |
Image Format | JPG,PNG |
Lens | 3.6mm |
View Angle | 85/85/85/85(L/R/U/D) |
Contrast | 1000:1 |
Response Time | 25ms |
Effective Display Area | 343.16mm (H) × 193.59mm(V) |
Video Format | MP4 |
Image Format | JPG,PNG |
Touch Panel Parameters | |
Touch Technology | Capacitive Touch |
Touch Points | 10 Points |
Light Transmittance | ≥80% |
Surface Rigidity | 6H + |
Anti - light Interference | The Light in a Variety of Angles Can be Used Normally |
Communication Interface | USB |
Writing Style | Finger or Stylus |
Touch Working Life | More than 80,000 Hours |
Temperature & Face Recognition | |
Temperature Method | Thermal Infrared Imaging Scanning |
Temperature Range | 30-45°C |
Precision | ±0.3°C |
Temperature Detect Distance | 0.5~2M, 1M is the best |
Measurement Speed | ≤1S |
Imaging resolution | 160*120 |
Face Recognition Technology | FACE ++ |
Viewing Angle | 40°×30° |
Recognition Speed | ≤500ms |
Mask Function | Provide Disposable Mask Self-collection Interface |
Advertisement & Propagation | Provide Circular Broadcast Propaganda Videos and Pictures Promote the Knowledge of Enterprises or Epidemic Prevention |
U Disk | Support U disk content update operation |
Audio compression format | G.711/PCM |
Audio Output | Speaker |
Automatic Disinfectant Sensing Mode | |
Induction Mode | Infrared induction, extend your hand to the nozzle under the induction |
Induction Distance | ＜10CM |
Spray Type | Foam |
Output Mode | Single Quantitative Type |
Capacity | 1000ML |
Support Under Liquid/ Full Liquid Detection | |
Mask Delivery Mode | |
Mask Specification | N95/KN95 |
Principle of Delivery: | Pop-up + Motor |
Number of Spring tunnels: | 2pcs |
Number of Masks For single Aisle | 10pcs |
Mask Drop Detection | Support |
Accessories | |
AC Adaptor | 1PC |
User Manual | 1PC |
Warranty Card | 1PC |
Installation & Package | |
Installation Method | Desktop |

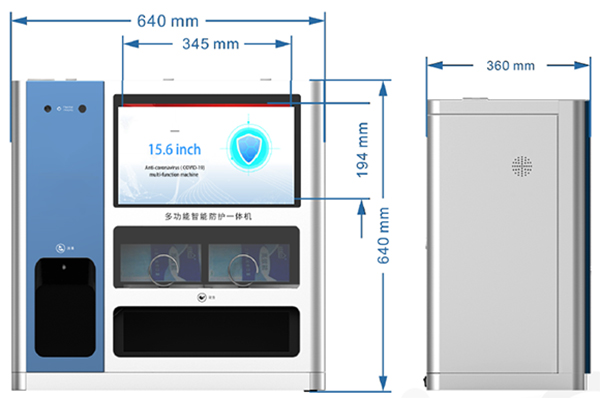

Device Size | 640mm*640mm*360mm |
Package Size | 745mm*750mm*460mm |
Weight | 30KG±1KG |
Speaker Power | 2×8Ω 5W |
Input Power Voltage | AC 100～240V 50/60HZ |
Engine Power | ≤60W |
Standby power Consumption | ≤0.5W |
