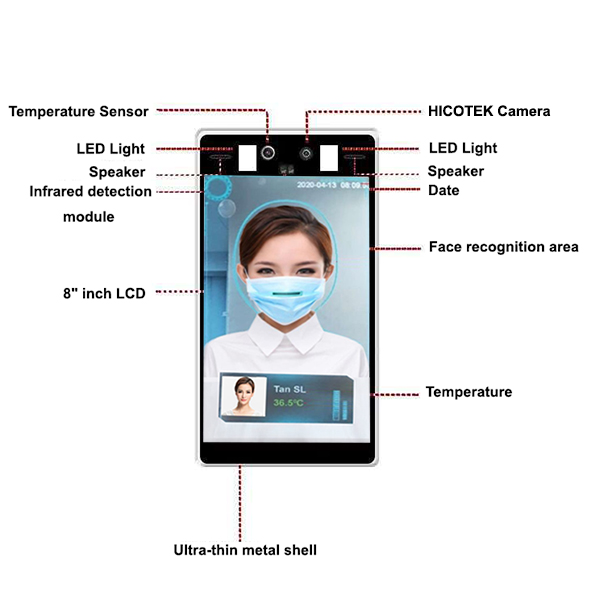

Features:
Built-in Non-touch High-precision Thermal Imaging Module
Support Live Body Detection Technology
Temperature Detection Range 35℃~42℃,Precision±0.3℃
Support Body Temperature & Mask Detection
Support 50,000 Face Database
100 MS Fast Identification
Local Alarm Output after Abnormal Temperature
Support Directly Driving Access/Gates Control Protocol
FRC-HPFT08M20E | |
Products | Face Recognition &Temperature Detection AI Smart Camera With 8 Inch Led Screen |
Chipset | |
Resolution | 2 MP |
Sensor | Thermal imaging infrared temperature Sensor |
Effect Pixel | 1080P@30FPS |
Temperature Range | 35~42℃, Precision: ±0.3℃ |
Detect Distance | 0.4~0.7M |
Character overlay | Support channel name, date and time overlay, adjustable overlay position |
S/N Ratio | ≥50dB(AGC OFF) |
Wide Dynamic Range | >120dB |
Digital Noise Reduction | 3D Digital Noise Reduction |
Lens | 1.8mm |
View Angle | 120 Degree |
Video Parameters | |
Video compression | H.265 Main Profile / H.264 High profile / M-JPEG |
Video Resolution | Main stream 1920×1080/1280×960/1280x720/720x576 |
Sub stream 640x480、352x288、320x240、176x144 | |
MJPEG 1920x1080、1280x720、closed | |
Video Bit Rate | (CBR or VBR), Bitstream setting range:32Kbps~10Mbps |
Exposure Mode | Program mode (customizable shutter interval), shutter mode(1/5 - 1/20,000s)support for slow shutter |
White Balance | Auto, indoor, outdoor, sodium lamp mode, manual |
Audio Output | Built-in 2ch Audio Output |
Audio parameter | |
Audio compression format | G.711/PCM |
Audio Mount | MIC |
Smart AI Function | |
Number of face Bases | 50000PCS |
Recognition Speed | ≤100ms |
Live Detection | |
Mask Detection | Support |
Body Temperature | Support |
Network parameters | |
Network Interface | 1 RJ45 10M/100M Adaptive Ethernet port |
Network Protocol | IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS, PPPOE, DDNS, FTP |
Access Standard | / |
Wiegand | 1ch Wiegand Output Interface |
Switch | 1ch relay output |
SD card | Up to 128G |
General Parameters | |
Shell | Ultra-thin Metal Shell |
HD LCD Display | 8 inch |
Power Supply | DC12V |
Power Consumption | 5W |
Working Temperature | -10℃~50℃ |
Working Humidity | 0%-90% RH |
Waterproof | IP66 |
LED Light | 2pcs Warm-White Leds |
Day &Night Mode | Full Color |
Light Distance | 1~3M |
Min Lux | 0.001Lux@F1.2 at Color Mode |

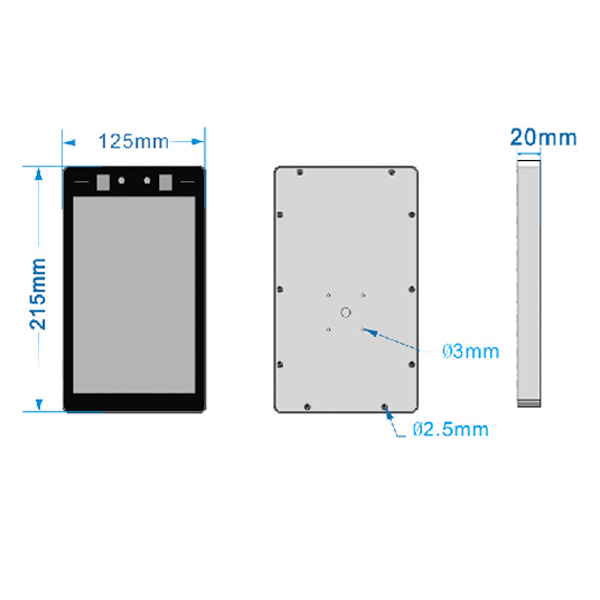

Dimensions | 215(L)*125(W)*20(H)mm |
Device Weight | 1000g |

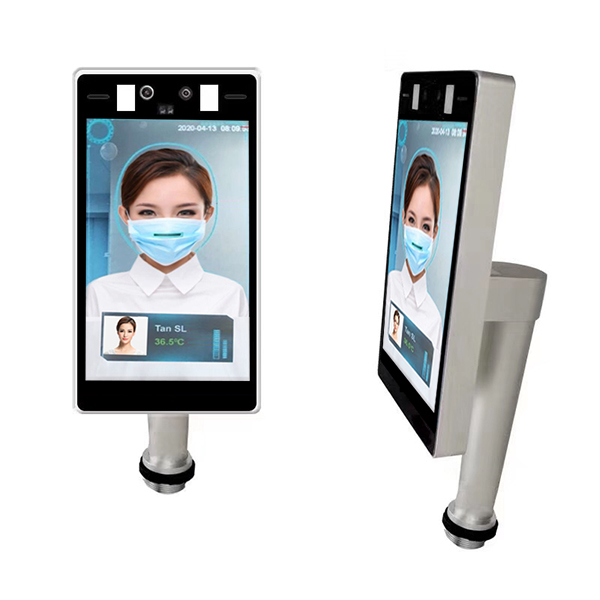

Bracket | Ceiling / Mounting/Stand Optional |
