Chipset

Image Sensor

1/3" GMAX0806

1/3" SC3235

Main processor

FH8630

FH8650

Resolution

1080P

3MP

Effective Pixels

  1920(H)*1080(V)

  2048(H)*1560(V)

Compression

H.264/JPEG/AVI/MJPEG

H.264/JPEG/AVI/ MJPEG

TV System

PAL/NTSC Adjustable

Pan

N/A

Tilt

N/A

S/N Ratio

≥52Db

Lens

Focus Length

3.6mm

3.6mm

Focus Control

Fixed

Fixed

Lens Type

Fixed

Fixed

Pixels

2MP

3MP

Night Vision

Infrared LED

4pcs White   Led + 4pcs IR Array

Infrared Distance

50M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

WIFI

2.4GHz WiFi (IEEE 802.11 b/g/n)

RJ45 Access

Yes

IE Protocol

HTTP/TCP/IP/RTSP/ONVIF

Antenna

4x Strong   Antenna 1.5db

P2P

YES

OS Require

iOS (V10.0 or Above) or Android (V5.0 or   Above)

SD Card

                                                        Support Max 64GB TF-card

Cloud Storage

                                                                    YES

Audio Input

Internal Microphone (38dB)

Pickup Range

5 Meters

Audio Output

Internal Speaker (38dB)

Audio Type

Two-way Audio with Noise Cancellation

Video Quality

1920*1080@25fps

2048*1560@25fps

Video Mode

Manual Video; Alarm Video

Smart Phone

iPhone, Android

Camera Features

Day/Night

Color/ B&W (Auto ICR )

BLC

Support

Support

AGC

Support

 Support

Motion Detection

Smart PIR Sensor (Sensitivity Editable)

General

Housing

Metal    for outdoor Use

Bracket

YES

Operation Temperature

-20℃ ~ +55℃ RH95% Max

Storage Temperature

-25℃ ~ +60℃ RH95% Max

Power Type

DC 12V 750mA

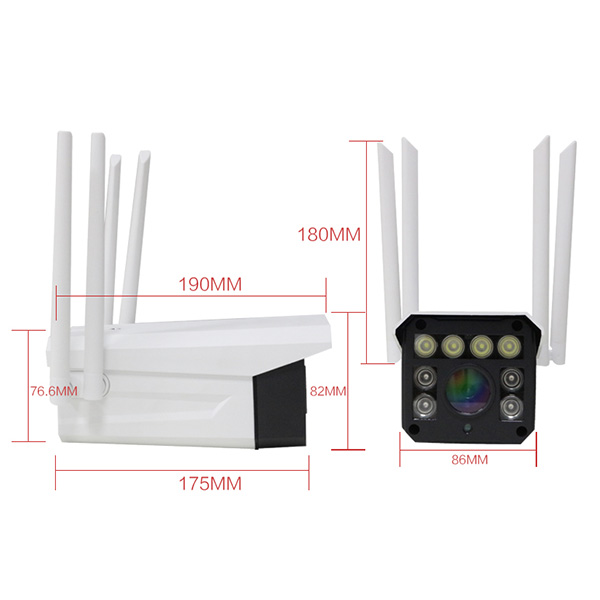

Dimension

190(L)*86(W)*77(H)mm

Weight

650g
