Features:

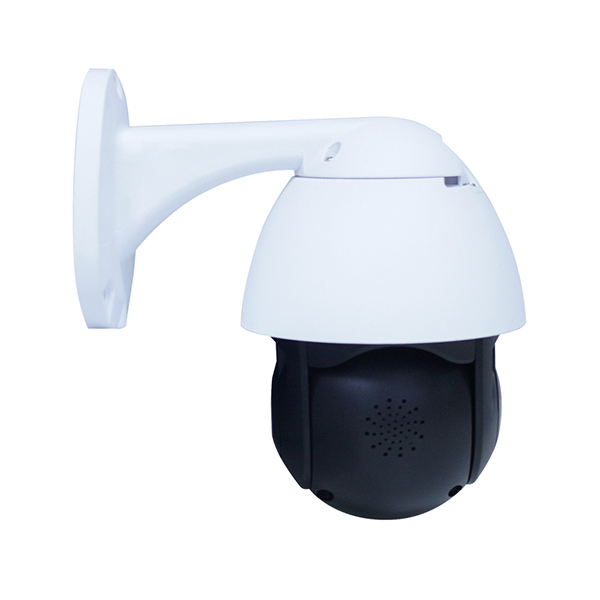

2.5” IP66 Waterproof P/T/Z WIFI Camera
Lens: 3.6mm Standard
IR: 6pcs, IR 40M (2pcs Red Light for Alarm)
P:0°-355°;T:0°-90°; Z:4X (Electronic enlarge by APP)
RJ45 Access/Motion Detection/ Alarm/ Auto-Tracking
Remote Playback/ Two-way Audio
Support Max 128GB SD card
Support Cloud Storage
P2P,For iPhone and Android
H.264/ ONVIF/Phone APP/NVR/PC/IE
Model NO. | WIP-HRMIF01M20 | WIP-HRMIF01M40 |
Chipset | ||
Image Sensor | 1/3" OV0806 | 1/2.7" OV4689 |
FH8630 | HI3516D | |
Resolution | 1080P | 4MP |
Effective Pixels | 1920(H)*1080(V) | 2560(H)*1440(V) |
Compression | H.264/JPEG/AVI/ MJPEG | H.264/JPEG/AVI/ MJPEG |
TV System | PAL/NTSC Adjustable | |
Pan | 0°-355° | |
Tilt | 0°-90° | |
Auto Tracking | Yes | |
S/N Ratio | ≥52dB | |
Lens | ||
Focus Length | 3.6 mm | 3.6 mm |
Focus Control | Fixed | Fixed |
Lens Type | Fixed | Fixed |
Pixels | 2MP | 5MP |
Night Vision | ||
Infrared LED | IR LED: 4pcs IR Array (850nm) + 2 pcs Red Led for Alarm | |
Infrared Distance | 40M | |
IR Status | Under 10 Lux By CDS | |
IR Power On | CDS Auto Control | |
Network | ||
WIFI | 2.4GHz WiFi (IEEE 802.11 b/g/n) | |
RJ45 Access | Yes | |
Antenna | Built in Strong Antenna Module | |
P2P | YES | |
OS Require | iOS (V10.0 or Above) or Android (V5.0 or Above) | |
SD Card | Support Max 128GB TF-card | |
Cloud Storage | YES | |
Audio Input | Internal Microphone (38dB) | |
Pickup Range | 5 Meters | |
Audio Output | Internal Speaker (38dB) | |
Audio Type | Two-way Audio with Noise Cancellation | |
Video Quality | 1920*1080@25fps | |
Video Mode | Manual Video; Alarm Video | |
Smart Phone | iPhone, Android | |
Camera Features | ||
Day/Night | Color/ B&W (Auto ICR ) | |
BLC | Support | |
AGC | Support | Support |
Motion Detection | Smart PIR Sensor (Sensitivity Editable) | |
General | ||
Housing | IP66 Waterproof | |
Bracket | YES | |
Operation Temperature | -20℃ ~ +55℃ RH95% Max | |
Storage Temperature | -25℃ ~ +60℃ RH95% Max | |
Power Type | DC12V 2000mA | |
Dimension | 115(D) *170(H) mm | |
Weight | 1500g | |
