XVR System

Type

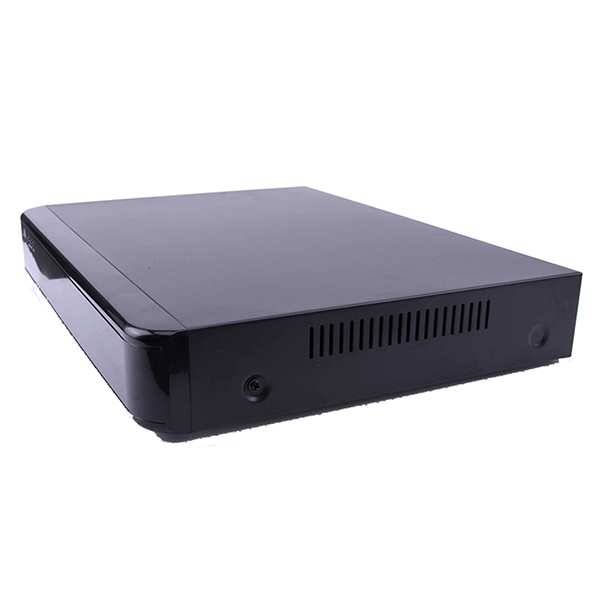

16CH 5MP Hybrid DVR

Compression Method

H.265/H.264

Main Processor

3531D_4*2828_12G

Operating System

Embedded LINUX

HDD

4 SATA, MAX 6TB Each

Display & Recording

Video Input

16CH

Encode Capacity

1.AHD/TVI:16CH 5M@6fps recording

2. HVR:12CH 5M@6fps Analog + 4CH 5M@25fps IP recording

3.HVR:8CH 5M@10fps Analog + 8CH 5M@25fps IP recording

4.HVR:4CH 5M@10fps Analog + 12CH 5M@25fps IP recording

5.NVR:16CH 5M@25fps IP recording

Search Mode

Time, Date, Alarm, Motion Detection, Exact Search

Playback Mode

Normal Play, Fast Forward, Fast Rewind,

Frame by Frame, Zoom In /Out

Playback & Backup

Decode Capability

MAX 4CH 5MP

Sync Playback

1.AHD/TVI: 4CH 5M@6fps playback

2. HVR: 4CH 5M@25fps playback

3.HVR: 4CH 5M@25fps playback

4.HVR: 4CH 5M@25fps playback

5.NVR: 4CH 5M@25fps playback

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Rewind

Backup Mode

USB Device/DVD/CD/Network

Video | Alarm | Audio

Video Output

1x HDMI,1x VGA,1x CVBS

Audio

8CH

Alarm

4CH

Network

Interface

RJ45 Port / 10M / 100M Adaptive

IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP

CMS Software

Support

Cloud Support

iCloud Software one‐click online; Support IE Firefox

Google Chrome Mac OS Safari

Language

28 kinds of Languages

Smart Phone

Iphone, Ipad, Android, Android Pad

General

Voltage

DC 12V

USB Port

2 USB2.0

PTZ

Pelco-D, Pelco-P

RS485

YES

Size

440*300*70 mm

Weight

5.0 Kgs (Without HDD)
