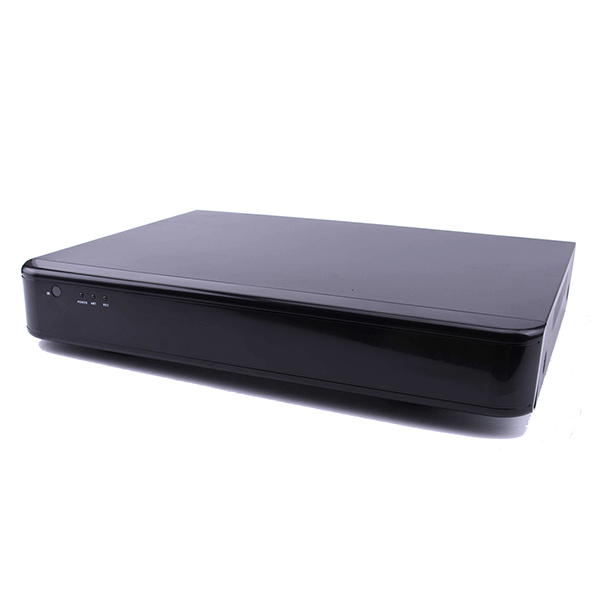

XVR System

Type

8CH 5MP Hybrid DVR

Compression Method

H.265/H.264

Main Processor

3521D_2828_8G

Operating System

Embedded LINUX

HDD

2 SATA, MAX 6TB Each

Display & Recording

Video Input

8CH

Encode Capacity

1.AHD/TVI:8CH 5M@6fps recording

2. HVR:4CH 5M@10fps Analog + 4CH 5M@25fps IP recording

3.NVR:8CH 1080P@25fps IP recording

Search Mode

Time, Date, Alarm, Motion Detection, Exact Search

Playback Mode

Normal Play, Fast Forward, Fast Rewind,

Frame by Frame, Zoom In /Out

Playback & Backup

Decode Capability

MAX 4CH 5MP

Sync Playback

1.AHD/TVI: 4CH 5M@6fps playback

2. HVR: 2CH 5M@6fps playback

3.NVR: 4CH 1080P@25fps playback

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Rewind

Backup Mode

USB Device/DVD/CD/Network

Video | Alarm | Audio

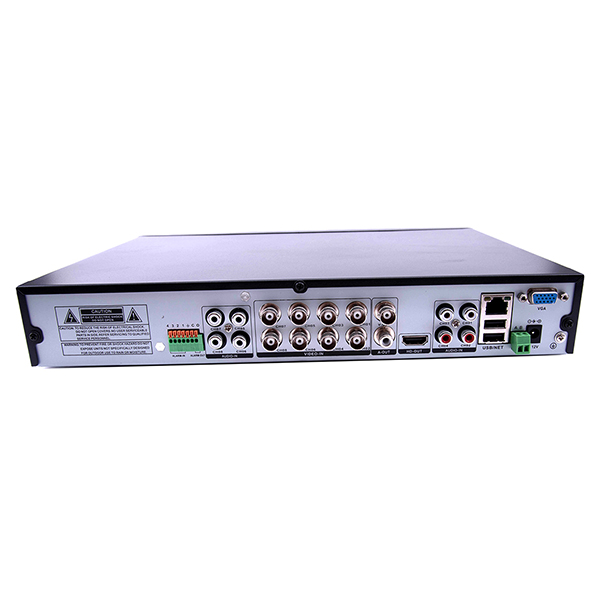

Video Output

1x HDMI,1x VGA,1x CVBS

Audio

8CH

Alarm

4CH

Network

Interface

RJ45 Port / 10M / 100M Adaptive

IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP

CMS Software

Support

Cloud Support

iCloud Software one‐click online; Support IE Firefox

Google Chrome Mac OS Safari

Language

28 kinds of Languages

Smart Phone

Iphone, Ipad, Android, Android Pad

General

Voltage

DC 12V

USB Port

2 USB2.0

PTZ

Pelco-D, Pelco-P

RS485

YES

Size

335*255*50mm

Weight

2.5 Kgs (Without HDD)
