Camera

Image Sensor

1/2.3" So-ny IMX577 CMOS

Effective Pixels

12 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

Other

Human body and Vehicle detection ,Privacy Mask, Flip ,OSD overlay, video cover alarm

Encode

Video Standard

H.265+/H.265/H.264

Video Resolution

MainStream:25fps@12MP(4000x3000)/8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a/AAC

Smart Detection

Human body and Vehicle Detection

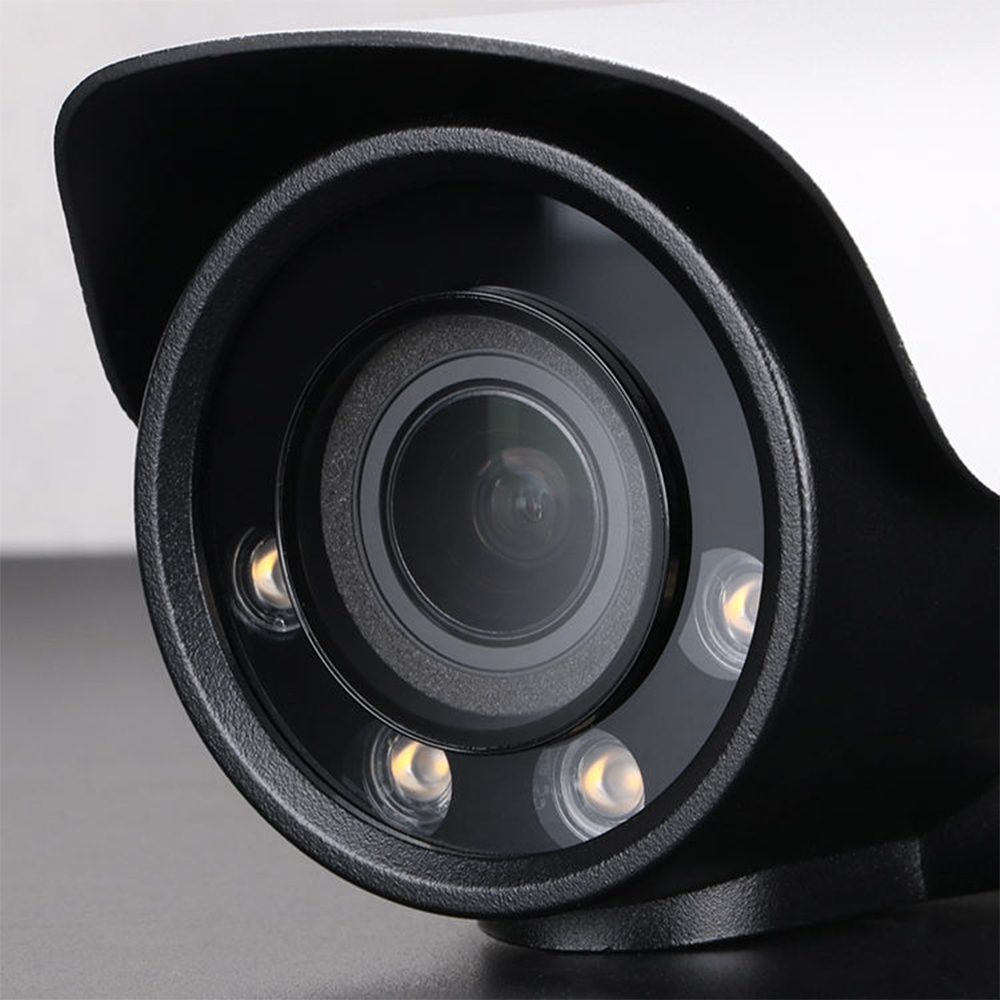

LED and distance

Led

4PCS dual Light source LEDs

Light Distance

30-40 M

Lens

Focal length

4 mm F1.6 Fixed lens

Optional Function

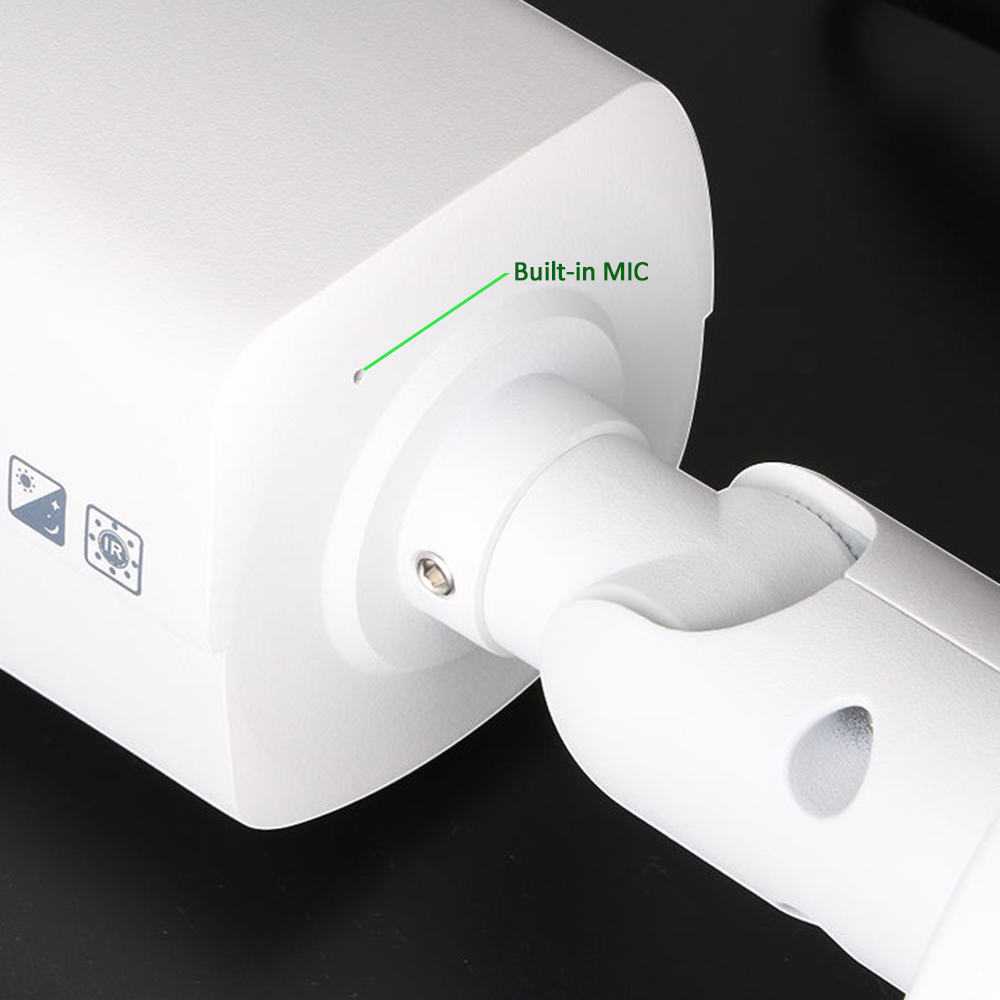

Built in microphone and SD card slot(support up to 128GB SD card)

Network Services

Protocol

HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.

P2P

Yes

Web

IE , Firefox (32bit esr),etc.

Media

CMS, Android, IOS

ON-VIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, POE optional

Power Supply

12 VDC ± 10%

Power Consumption

< 10 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH
