Features:

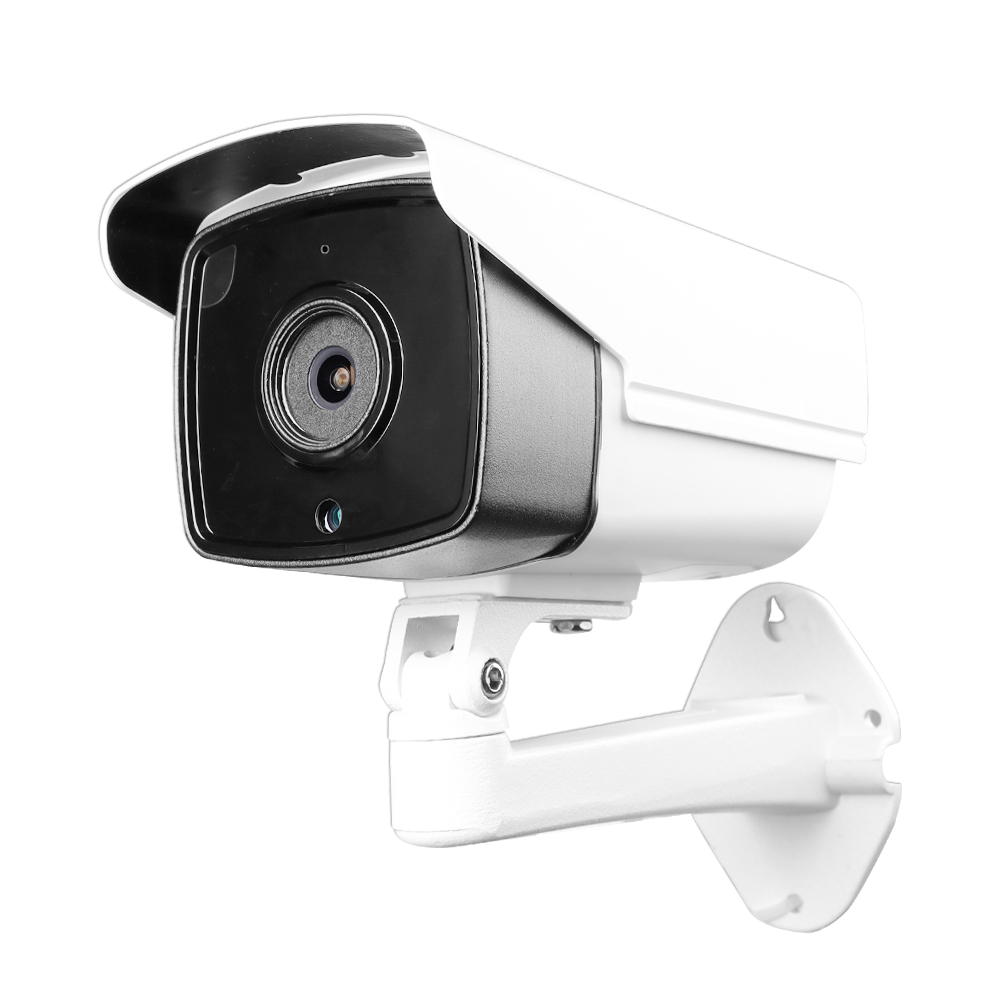

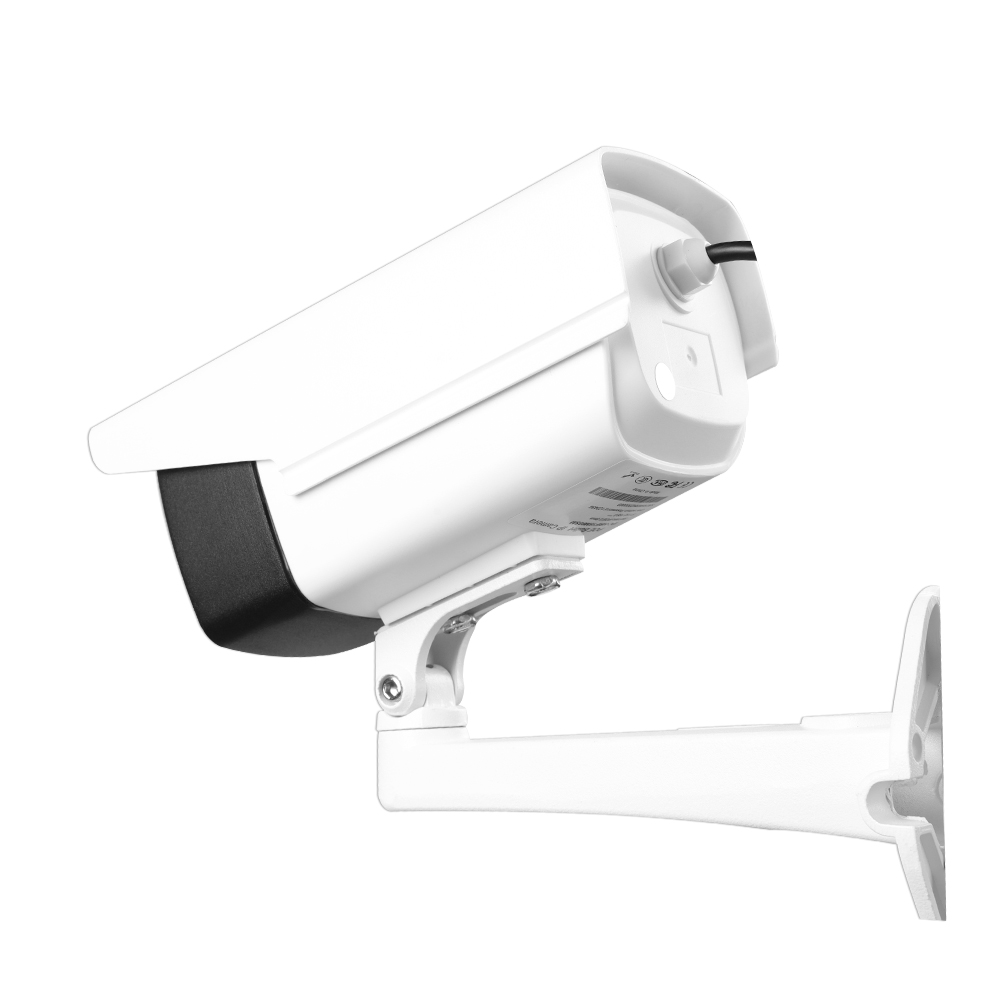

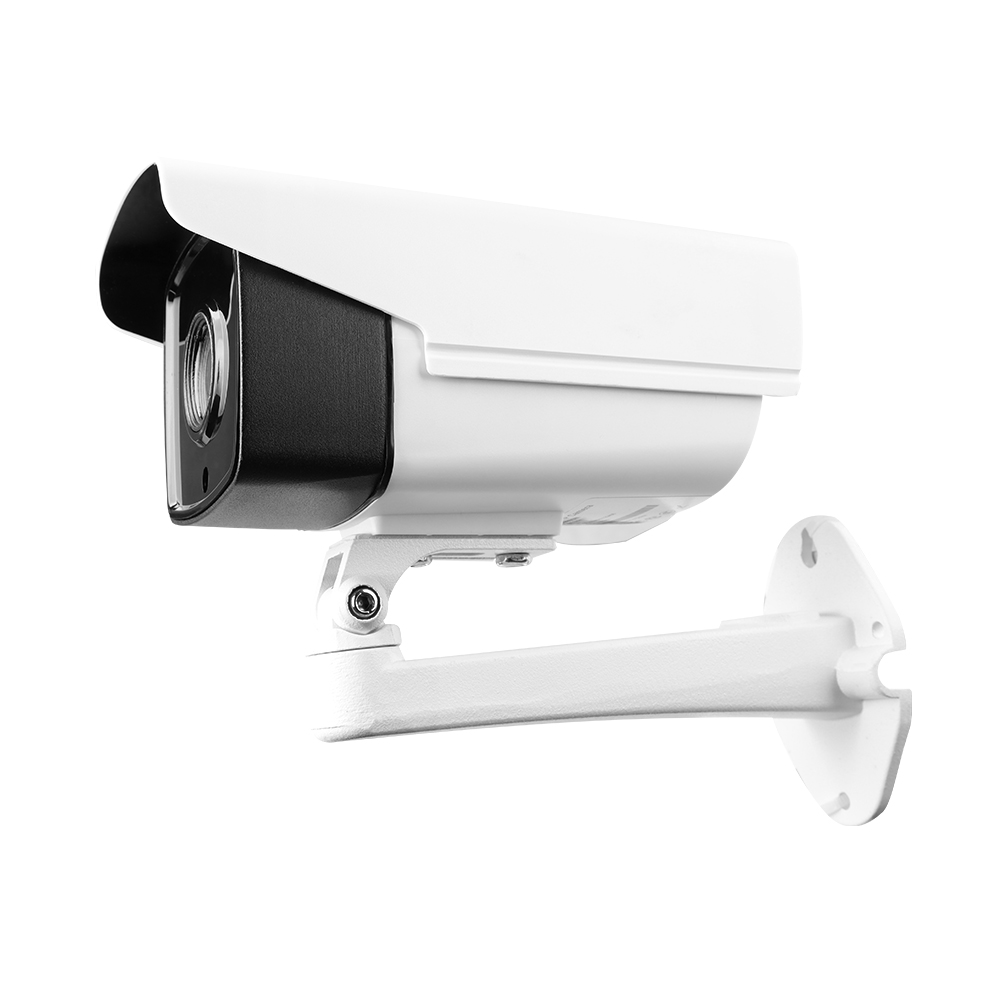

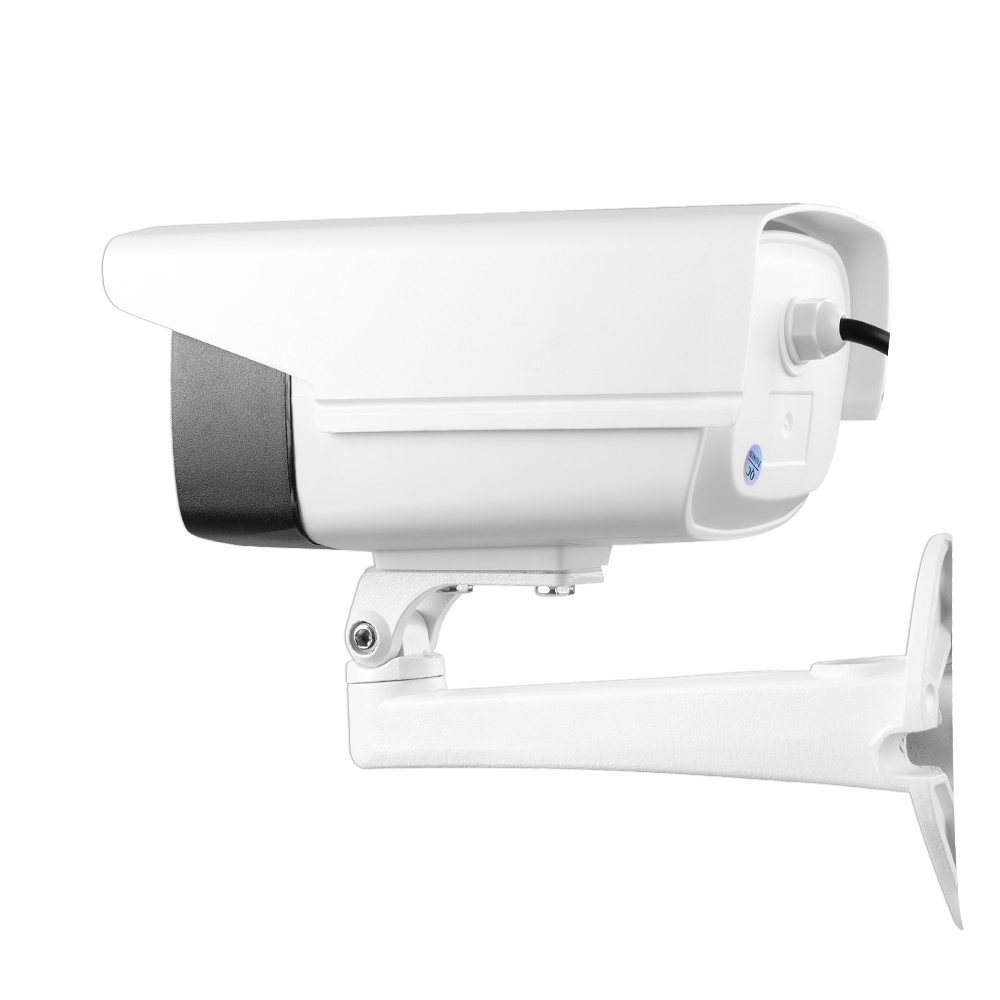

Waterproof IR Bullet Camera
2.7-13.5mm 5X motorized Lens
IR LED: 18pcs IR Array
40M IR Range
POE and Built in MIC Included
Cusmotized Alarm Sound
Water Resistant Rate:IP66
ONVIF 2.4
Model NO. | IPC-HBIV15M20SMAF | IPC-HBIV15M50SMAF | IPC-HBIV15M80SMAF | IPC-HBIV15M12SM |
Chipset | ||||
Image Sensor | SONY IMX307 | SONY IMX335 | SONY IMX415 | SONY IMX577 |
Main processor | MSC335 | MSC30KQ | MSC328Q | MSC359 |
Resolution | 1080P | 5MP | 8MP | 12MP |
Effective Pixels | 1920(H)*1080(V) | 2592(H)*1944(V) | 3840(H)*2160(V) | 4000(H)*3000(V) |
Compression | H.264/H.265/ JPEG/AVI/MJPEG | |||
TV System | PAL/NTSC Adjustable | |||
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |||
S/N Ratio | ≥52dB | |||
Scanning System | Progressive | |||
Video Output | Network | |||
Lens | ||||
Focus Length | 2.7-13.5mm Motorized Auto Focus | 2.7-13.5mm Motorized Auto Focus | 2.7-13.5mm Motorized Auto Focus | 3.6mm |
Focus Control | Motorized Auto Focus | Motorized Auto Focus | Motorized Auto Focus | Fixed |
Lens Type | Motorized Auto Focus | Motorized Auto Focus | Motorized Auto Focus | Fixed |
Pixels | 2MP | 5MP | 8MP | 12MP |
Night Vision | ||||
Infrared LED | IR : 18pcs IR Array | |||
Infrared Distance | 40M | |||
IR Status | Under 10 Lux By CDS | |||
IR Power On | CDS Auto Control | |||
Network | ||||
Ethernet | RJ-45 (10/100Base-T) | |||
Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | |||
ONVIF | Support ONVIF 2.4 | |||
P2P | YES, Support QR Code | |||
POE | YES | |||
WIFI | N/A | |||
TF Card Slot | N/A | |||
Video Bit Rate | Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps) | |||
Video Type | Complex Stream/ Video Stream | |||
Audio Compression | G.711U (Optional) | |||
Main Stream 1 | 1920*1080@30fps | 2592*1944@25fps | 3840*2160@20fps | 4000*3000@30fps |
Main Stream 2 | 3MP@25fps | 2048*1520@30fps | 3072*1728@25fps | 3840*2160/3072*2048/2592*1944@30fps |
Main Stream 3 | 720P/D1@30fps | 1920*1080@30fps | 2592*1944/2560*1440/1080P@30fps | 2560*1440/2304*1296/1920*10850 /1280*720@60fps |
Sub Stream 1 | 640*360@25fps | 720*480@30fps | 720*480@30fps | 720*480@30fps, D1 |
Sub Stream 2 | VGA/D1/CIF@25fps | 640*360@30fps | 640*360@30fps | 640*360@30fps, VGA |
Tri Stream | 1920*1080@30fps | 2592*1944@25fps | 3840*2160@20fps | / |
IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | |||
Smart Phone | i-Phone, iPad, Android, Android Pad | |||
Intelligent Analysis | Human Detection, motion detection | Human Detection,Vehicle Detection, motion detection | ||
Day/Night | Color/ B&W (IR-CUT ) | |||
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | |||
Corridor Pattern | Support | |||
Defog Mode | Support | |||
BLC | Support | |||
HDR | Support | |||
DWDR | Support | |||
Motion Detection | Support | |||
Privacy Masking | 3 Rectangular Zone | |||
Recording Mode | NVR/NAS/CMS/Web | |||
Language | Chinese Simplified, Chinese Traditional, English, Russian, Ukrainian, German, Italian, Turkish, Hrvatski, Portuguese, Polski, Korean, Japanese, Arabic | |||
General | ||||
Housing | Metal ,IP66 | |||

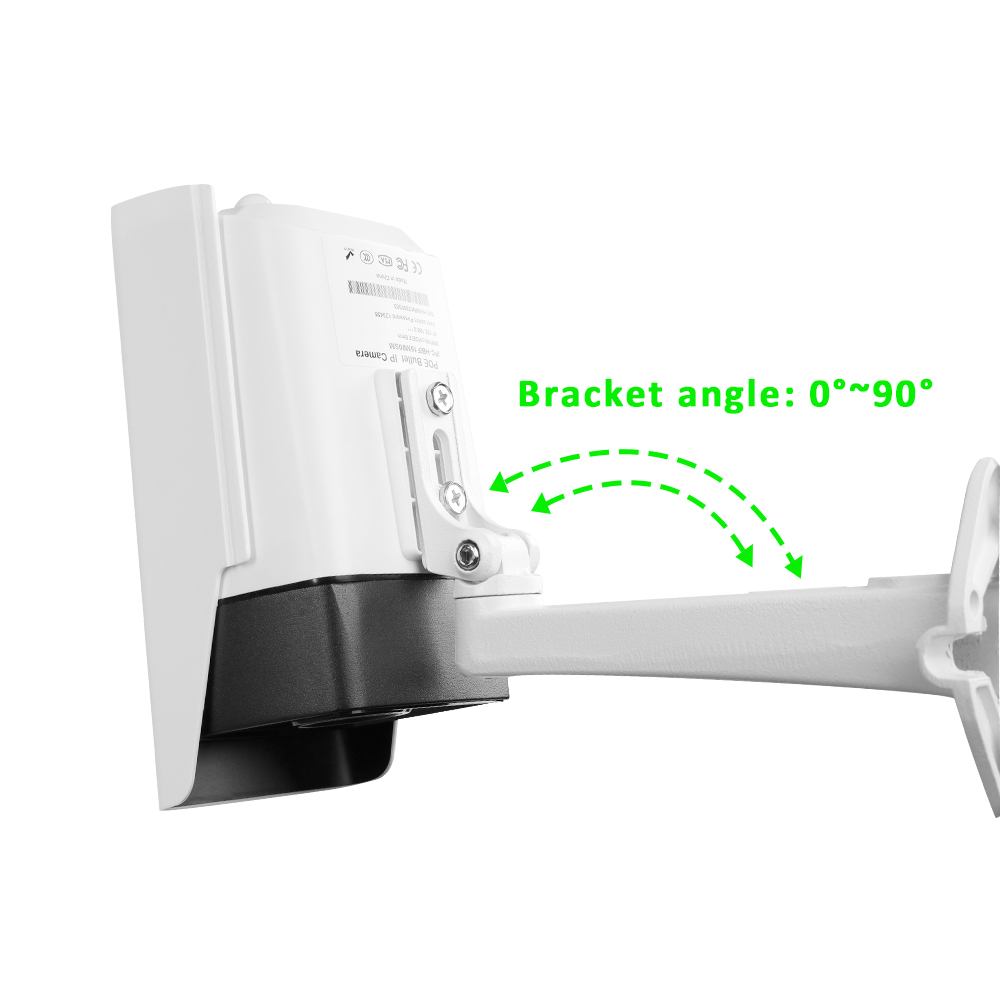

Anti-cut Bracket | YES | |||
IR Cut Filter | YES | |||
Operation Temperature | -20℃ ~ +50℃ RH95% Max | |||
Storage Temperature | -30℃ ~ +60℃ RH95% Max | |||
Power Source | DC12V±10%, 600mA /48V POE | |||
Dimension | 96(W)*82(H)*200(L)mm | |||
Weight | 750g | |||
Please enter your inquiry details such as model no., lens, color,quantity,ect .
