Features:

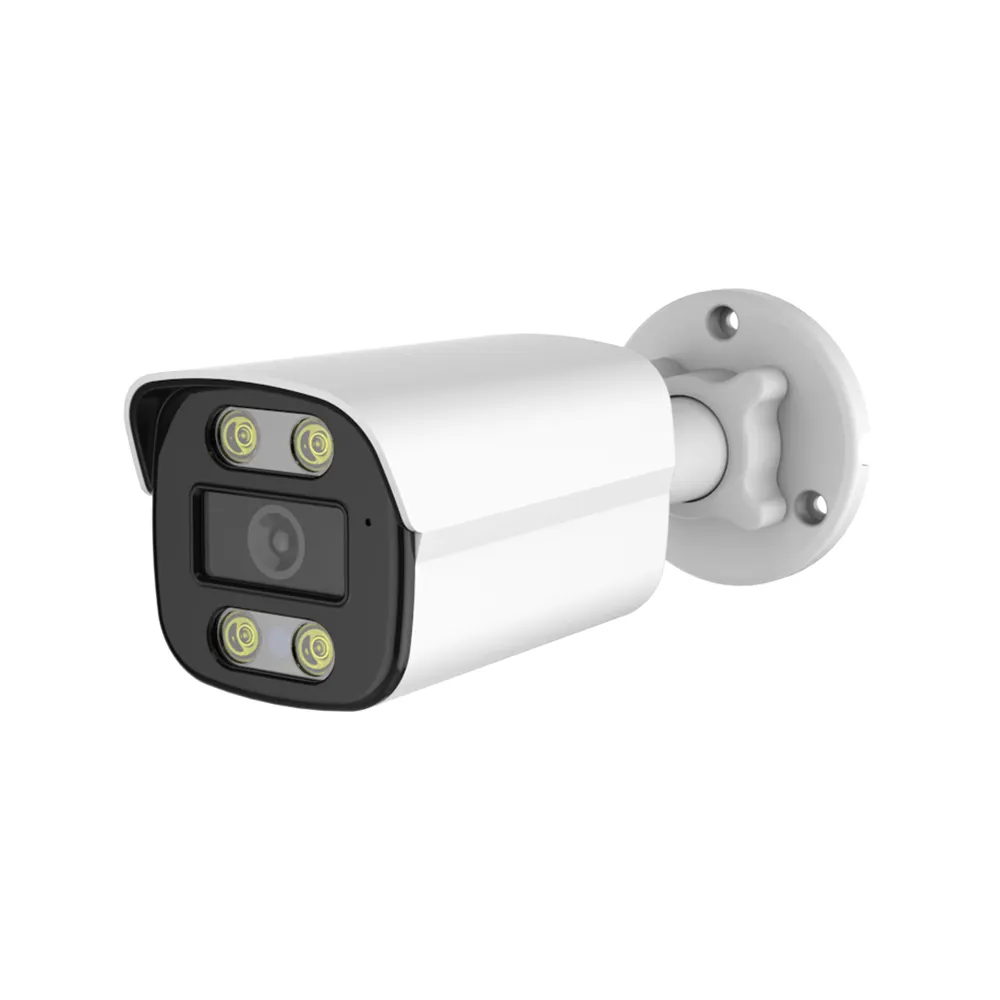

6MP IP66 Dual Light Bullet IP Camera
Lens: 3.6mm
IR: 6pcs dual light led, IR 30M
Motion Detection
Snapshot/Playback/ Two way audio
Support Max 128GB SD card
Support Cloud Storage
H.265+/ ONVIF/IE
Model NO. | / | HTY-BWF600F | / | / |
Chipset | ||||
Image Sensor | / | GC5653 | / | / |
Main processor | / | FH8852V310 | / | / |
Resolution | / | 6MP | / | / |
Effective Pixels | / | 1800(H)*3200(V) | / | / |
Compression | H.264/H.265/ JPEG/AVI/MJPEG | |||
TV System | PAL/NTSC Adjustable | |||
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |||
S/N Ratio | ≥52dB | |||
Scanning System | Progressive | |||
Video Output | Network | |||
Lens | ||||
Focus Length | / | 3.6mm | / | / |
Focus Control | / | Fixed | / | / |
Lens Type | / | Fixed | / | / |
Pixels | / | 6MP | / | / |
Night Vision | ||||
Infrared LED | IR LED: 6pcs | |||
Infrared Distance | 30M | |||
IR Status | Under 10 Lux By CDS | |||
IR Power On | CDS Auto Control | |||
Network | ||||
Ethernet | RJ-45 (10/100Base-T) | |||
Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | |||
ONVIF | Support ONVIF 2.4 | |||
P2P | YES, Support QR Code | |||
IP | Yes | |||
TF Card | N/A | |||
Video Bit Rate | Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps) | |||
Video Type | Complex Stream/ Video Stream | |||
Audio Compression | G.711U (Optional) | |||
Main Stream 1 | / | 1800(H)*3200(V) | / | / |
Main Stream 2 | / | 1520(H)*2688(V) | / | / |
Main Stream 3 | / | 1920(H)*1080(V) | / | / |
Sub Stream 1 | / | / | / | / |
Sub Stream 2 | / | / | / | / |
Tri Stream | / | / | / | / |
IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | |||
Smart Phone | i-Phone, iPad, Android, Android Pad | |||
Intelligent Analysis | / | Motion detection | ||
Day/Night | Color/ B&W (IR-CUT ) | |||
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | |||
Corridor Pattern | Support | |||
Defog Mode | Support | |||
BLC | Support | |||
HDR | Support | |||
DWDR | Support | |||
Motion Detection | Support | |||
Privacy Masking | 3 Rectangular Zone | |||
Recording Mode | NVR/NAS/CMS/Web | |||
Language | Chinese Simplified, Chinese Traditional, English, Russian, Ukrainian, German, Italian, Turkish, Hrvatski, Portuguese, Polski, Korean, Japanese, Arabic | |||
General | ||||
Housing | Metal ,IP66 | |||
Anti-cut Bracket | YES | |||
IR Cut Filter | YES | |||
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |||
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||
Power Source | DC12V±10%, 600mA | |||
Dimension | 72(W)*66(H)*183(L)mm | |||
Weight | 440g | |||
