Features:

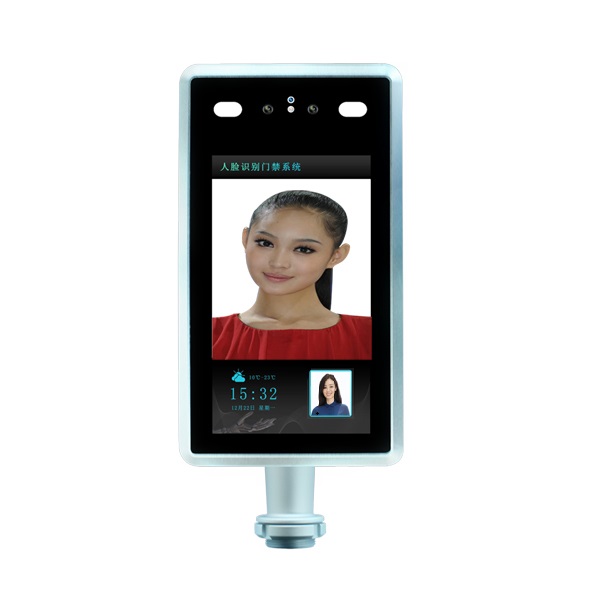

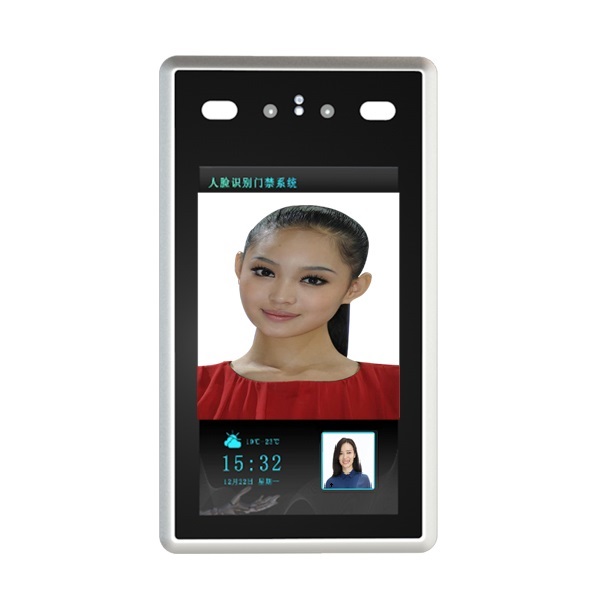

7" Access Control Face Recognition Camera
Support Binocular Live Body Detection Technology
Support 24,400 PCS Face Database
Support 100,000 of History Recordings
300 MS Fast Identification, 120dB WDR
Support Directly Driving Access/Gates Control Protocol
Support More than 10 of Language: English/Spanish/Italian/French/
German/Portuguese/Russian/Japanese/Korean/Chinese

sales@hicotek.com
  • Specification
  • Details
  • Drawing
  • Enquiry
  • Recommend


Model No.

FRC-HPFA10M20E

Products

Face Recognition & Access Control Camera With 7   Inch Led Screen

Chipset

Mainboard

HI3516DV300

System

Linux   Operation System

RAM

16G   EMMC

Binocular   Tech

Support   Live Detection

Effect   Pixel

2   Megapixel, 1920x1080@30FPS

Character   overlay

Support   channel name, date and time overlay, adjustable overlay position

S/N   Ratio

≥50dB(AGC   OFF)

Wide   Dynamic Range

>120dB

Digital   Noise Reduction

3D   Digital Noise Reduction

Lens

2.8mm

View   Angle

85   Degree

Multi-Language

English/Spanish/Italian/French/German/   Portuguese/

Russian/Japanese/Korean/Chinese/More…

Video and Audio Parameters

Video   compression

H.265   Main Profile / H.264 High profile / M-JPEG

Video Resolution

Main   stream 1920×1080/1280×960/1280x720/720x576

 Sub   stream 640x480352x288320x240176x144

MJPEG   1920x10801280x720closed

Video   Bit Rate

CBR or VBR), Bitstream setting range32Kbps~10Mbps

Exposure   Mode

Program   mode (customizable shutter interval), shutter mode1/5 - 1/20,000ssupport for slow shutter

White   Balance

Auto,   indoor, outdoor, sodium lamp mode, manual

Audio   Output

Built-in   2ch Audio Output

Audio   Compression Format

G.711/PCM

Audio   Mount

MIC

Voice   Alarm

Support

Face Recognition

Recognition   Height

1.2~2.2M,   Angle Adjustable

Recognition   Distance

0.5~2M

View   Angle

Vertical   ±40°

Recognition   Speed

≤500ms

Number   of face Bases

24400PCS   and 100000 Records

Access Control

Wiegand   OUT

 WG26;WG34

Wiegand IN

Default

Relay/Alarm

DC12V;DC8V;DC5V

USB   Interface

USB   2.0/3.0 for Card Reader /U Disk

Network parameters

Network   Interface

1   RJ45 10M/100M Adaptive Ethernet port

Network   Protocol

IPv4,   HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS,   PPPOE,   DDNS, FTP

Access   Standard

ONVIF

SD   card

Up   to 128G

Phone   APP

N/A

General Parameters

Shell

High   Quality Metal Shell

HD   LCD Display

7   inch

Power   Supply

DC12V

Power   Consumption

20W

Working   Temperature

-10℃~50℃

Working   Humidity

0%-90%   RH

Waterproof

IP66

 LED Light

2pcs   Warm-White Leds

Day &Night Mode

Full   Color

Light   Distance

1~3M

Min   Lux

0.001Lux@F1.2 at Color Mode

Dimensions

222(L)*123.5(W)*19.6(H)mm

Device   Weight

1300g

Bracket

          Gate Stand/ Wall Mounting Optional
