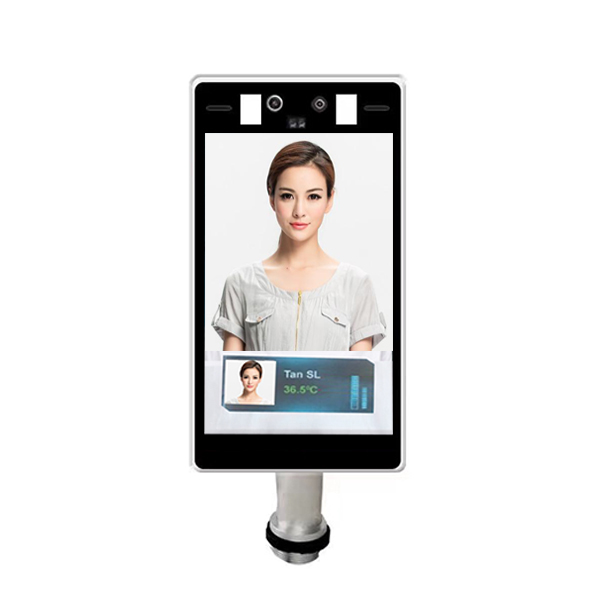

Face Recognition & Access Control Camera With 8   Inch Led Screen

Chipset

Mainboard

HI3516DV300

System

Linux   Operation System

RAM

16G   EMMC

Binocular   Tech

Support   Live Detection

Effect   Pixel

2   Megapixel, 1920x1080@30FPS

Character   overlay

Support   channel name, date and time overlay, adjustable overlay position

S/N   Ratio

≥50dB(AGC   OFF)

Wide   Dynamic Range

>120dB

Digital   Noise Reduction

3D   Digital Noise Reduction

Lens

2.8mm

View   Angle

85   Degree

Video and Audio Parameters

Video   compression

H.265   Main Profile / H.264 High profile / M-JPEG

Video Resolution

Main   stream 1920×1080/1280×960/1280x720/720x576

 Sub   stream 640x480、352x288、320x240、176x144

MJPEG   1920x1080、1280x720、closed

Video   Bit Rate

（CBR or VBR), Bitstream setting range：32Kbps~10Mbps

Exposure   Mode

Program   mode (customizable shutter interval), shutter mode（1/5 - 1/20,000s）support for slow shutter

White   Balance

Auto,   indoor, outdoor, sodium lamp mode, manual

Audio   Output

Built-in   2ch Audio Output

Audio   Compression Format

G.711/PCM

Audio   Mount

MIC

Voice   Alarm

Support

Face Recognition

Recognition   Height

1.2~2.2M,   Angle Adjustable

Recognition   Distance

0.4~1.5M

View   Angle

Vertical   ±40°

Recognition   Speed

≤300ms

Number   of face Bases

50000PCS   and 200000 Records

Access Control

Wiegand   OUT

 WG26;WG34

Wiegand IN

Default

Relay/Alarm

DC12V;DC8V;DC5V

USB   Interface

USB   2.0/3.0 for Card Reader /U Disk

Network parameters

Network   Interface

1   RJ45 10M/100M Adaptive Ethernet port

Network   Protocol

IPv4,   HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS,   PPPOE,   DDNS, FTP

Access   Standard

ONVIF

SD   card

Up   to 128G

Phone   APP

N/A

General Parameters

Shell

High   Quality Metal Shell

HD   LCD Display

8   inch

Power   Supply

DC12V

Power   Consumption

20W

Working   Temperature

-10℃~50℃

Working   Humidity

0%-90%   RH

Waterproof

IP66

 LED Light

2pcs   Warm-White Leds

Day &Night Mode

Full   Color

Light   Distance

1~3M

Min   Lux

0.001Lux@F1.2 at Color Mode

Dimensions

215(L)*120(W)*20(H)mm

Device   Weight

1000g

Bracket

          Gate Stand/ Wall Mounting Optional
