Features:

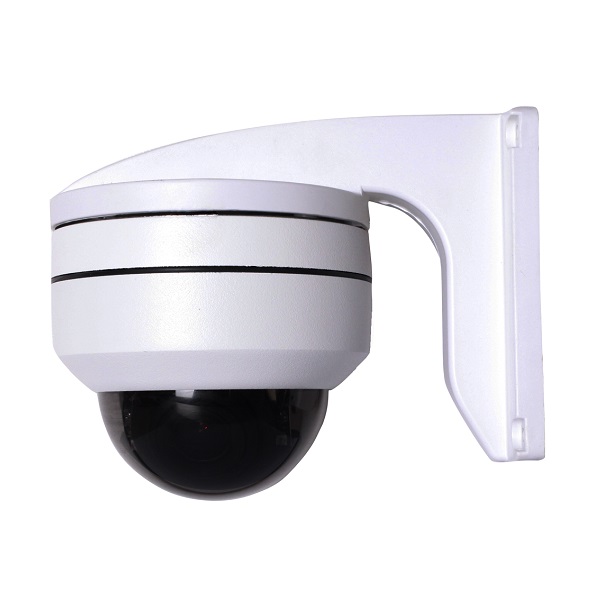

Mini Metal Dome IR PTZ Camera
Lens Opt 1: 4mm
Lens Opt 2: 2.8-12mm (4X) Zoom Lens
IR LED: 4pcs IR Array, IR 35M
Wireless Range: Max 200M
Support Max 128GB TF card
P2P, Support Phone APP
WIFI 802.11/B/G/N;ONVIF 2.4
Cable Reset
Water Resistant Rate:IP67
Model NO. | WIP-HRSIV01M20C01 | WIP-HRSIV01M20C04 | WIP-HRSIV01M50A04 |
Chipset | |||
Image Sensor | 1/2.7" AR0521 CMOS | ||
Horizontal Resolution | 2MP | 4MP | 5MP |
Compression | H.264 | H.264 | H.265 |
TV System | PAL/NTSC Adjustable | ||
S/N Ratio | ≥72dB | ||
Lens | |||
Focus Length | F=4mm | F=2.8-12mm | F=2.8-12mm |
Focus Control | Fixed | 4X Zoom | 4X Zoom |
Pixels | 2M Pixels/30fps | 2M Pixels/30fps | 5M Pixels/30fps |
Night Vision | |||
Infrared LED | IR LED: 30Mil IR Array x 4pcs | ||
Infrared Distance | 35M | ||
Auto Control IR LED | PWM | ||
PTZ Features | |||
Pan Rotation Range | 0°~355° | ||
Pan Rotation Speed | 25°/S | ||
Tilt Rotation Range | 0°~70° | ||
Tilt Rotation Speed | 20°/S | ||
Auto Flip | Support | ||
Preset Points | 220 of preset( Dwell Time 01-60s Interval Available) | ||
A-B Scan | User Programmable (Scan Speed 1-64 Levels Setting Available ) | ||
360° Scan | Support | ||
Guard Tours | 3 Groups (Max.16 Points) | ||
Storage | Support 128GB TF Card | ||
Intercom | Two-way Audio | ||
Communication Model | WIFI / RJ45 | ||
WIFI | |||
Wifi Protocol | 802.11b/g/n | ||
Wireless Distance | Max 200M | ||
Wifi Safe Mode | WEP/WPA/WPA2 | ||
Mobile View(App) | Android, iPhone | ||
General | |||
Housing | Metal, IP67 | ||
Bracket | YES | ||
IR Cut Filter | YES | ||
Operation Temperature | -30℃ ~ +50℃ RH95% Max | ||
Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
Power Source | DC12V±10%, 1.5A | ||
Power Consumption | ≤ 10W | ||
Dimension | 145(L)*145(W) *132(H) mm | ||
Weight | 650g | ||
