XVR System

Type

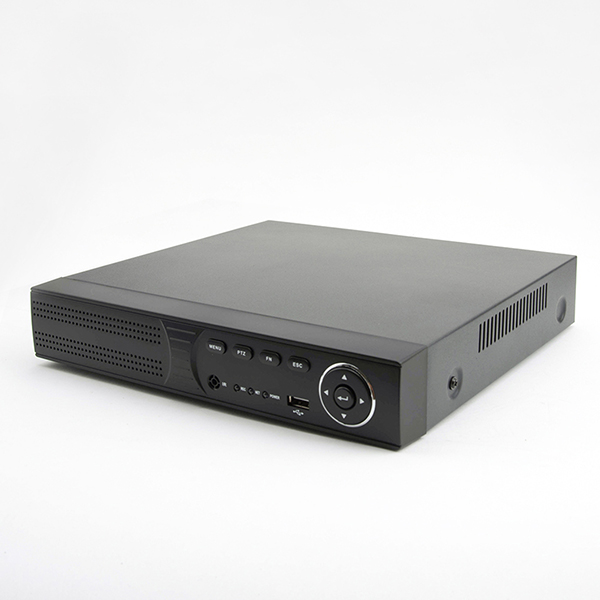

16CH 1080N 5-IN-1 DVR

Compression Method

H.264

Main Processor

3521A_4*6134C_4G

Operating System

Embedded LINUX

HDD

1 SATA, MAX 6TB

Display & Recording

Video Input

16CH

Encode Capacity

1.AHD / TVI / CVI:16CH 1080N@25fps recording,

2.HVR:12CH 1080N@25fps Analog + 4CH 1080P@25fps IP   recording

3.HVR:8CH 1080N@25fps Analog + 8CH 1080P@25fps IP   recording

4.HVR:4CH 1080N@25fps Analog + 12CH 1080P@25fps IP   recording

5.NVR:16CH 960P@25fps IP recording

6.NVR:4CH 5MP@25fps or 4CH 3MP@25fps IP recording

Search Mode

Time, Date, Alarm, Motion Detection, Exact Search

Playback Mode

Normal Play, Fast Forward, Fast Rewind,

Frame by Frame, Zoom In /Out

Playback & Backup

Decode Capability

MAX 16CH

Sync Playback

1.AHD / TVI / CVI:4CH 1080N@15fps playback or 16CH   1080N@12fps

2.HVR: 2CH 1080P@25fps playback

3.HVR: 2CH 1080P@25fps playback

4.HVR: 2CH 1080P@25fps playback

5.NVR:4CH 960P@25fps playback

6.NVR:4CH 5MP@25fps or 4CH 3MP playback

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Rewind

Backup Mode

USB Device/DVD/CD/Network

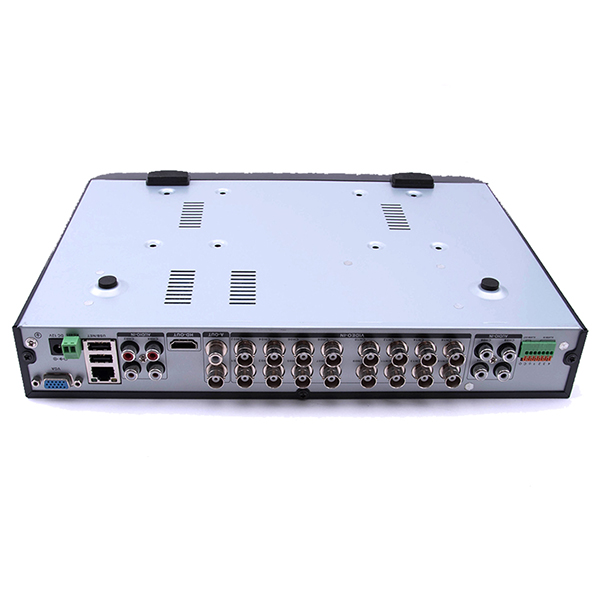

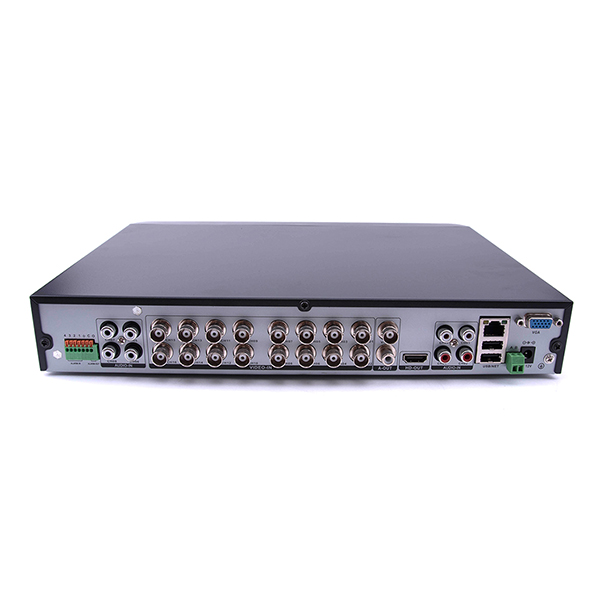

Video | Alarm | Audio

Video Output

1x HDMI,1x VGA,1x CVBS

Audio IN/OUT

1CH

Alarm IN/OUT

1CH

Network

Interface

RJ45 Port / 10M / 100M Adaptive

IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP

CMS Software

Support

Cloud Support

iCloud Software one‐click online; Support IE Firefox

Google Chrome Mac OS Safari

Language

28 kinds of Languages

Smart Phone

Iphone, Ipad, Android, Android Pad

General

Voltage

DC 12V

USB Port

2 USB2.0

PTZ

Pelco-D, Pelco-P

RS485

YES

Size

255*235*50 mm

Weight

5.0 Kgs (Without HDD)
