Features:

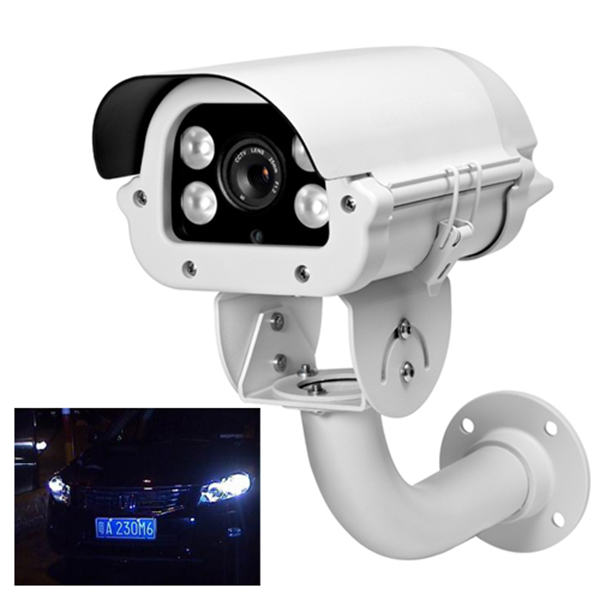

ANPR License Plate Recognize Camera
9-22mm Motorized Zoom Lens
IR LED: 30pcs SMD or F5x42pcs
40M IR Range
Water Resistant Rate:IP66
ONVIF 2.6
Anti-cable cutting/Anti-housing open

sales@hicotek.com
  • Specification
  • Details
  • Drawing
  • Enquiry
  • Recommend

Model NO.

 IPC-HLIV02M10

IPC-HLIV02M13

IPC-HLIV02M30

 IPC-HLIV02M40

IPC-HLIV02M50

IPC-HLIV02M80

Chipset

Image Sensor

/

1/3"Aptina

1/2.8" Sony

1/2.7”OmniVision

/

/

Main processor

/

HI3518E

HI3516D

Hi3516D

/

/

Resolution

/

960P

3MP

4MP

/

/

Effective Pixels

/

1305(H)*977(V)

  2560(H)*1440(V)

 2688(H)*1520(V)

/

/

Compression

/

H.264/JPEG/AVI/

MJPEG

H.264/JPEG/AVI/ MJPEG

H.264/JPEG/AVI/

MJPEG

/

/

TV System

PAL/NTSC Adjustable

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Speed

0-90km/h; 0-30km/h

Built-in LCD Monitor

YES

Plate No. Extraction

NO/ Working with the Parking Background   System

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Lens

Focus Length

/

9-22/2.8-12mm

9-22/2.8-12mm

9-22/2.8-12mm

/

/

Focus Control

/

Auto

Auto

Auto

/

/

Lens Type

/

Motorized

Motorized

Motorized

/

/

Pixels

/

2MP

4 MP

5MP

/

/

Night Vision

Infrared LED

IR LED: 30pcs   SMD or F5x42pcs

Infrared Distance

40M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.6

P2P

YES, Support QR Code

POE

Optional, Support IEEE 802.3af

WIFI

Optional

TF Card

Optional

Video Bit Rate

 Constant Bit Rate, Variable Bit Rate   (16kbps~8000kbps)

Video Type

Complex Stream/ Video Stream

Audio Compression

G.711U (Optional)

Main Stream 1

/

1280*960

@25fps

2560*1440@30fps

2560*1440@20fps

/

/

Main Stream 2

/

/

1920*1080@60fps

2304*1296@30fps

/

/

Main Stream 3

/

/

1920*1080@60fps

1920*1080@30fps

/

/

Sub Stream 1

/

720*480@25fps

720*480@60fps

720*480@30fps

/

/

Sub Stream 2

/

/

/

/

/

/

Sub Stream 3

/

/

/

/

/

/

Tri Stream

/

/

352*288@60fps

352*288@20fps
  352*288@30fps

/

/

IE Brower

IE8-11, Google Chrome, Firefox, Safari, Mac Safari

Smart Phone

iPhone, iPad, Android, Android Pad

Intelligent Analysis

Optional (Support Target Counting, Area   Detection, Left/Lost Prompt, Line Crossing Alarm )

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)

Corridor Pattern

/

/

Support

Support

/

/

Defog  Mode

/

Support

Support

Support

/

/

BLC

/

Support

Support

Support

/

/

HDR

/

/

/

/

/

/

WDR

Support

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands

General

Housing

Metal ,IP66

Anti-cut Bracket

YES

IR Cut Filter

YES

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V±10%, 780mA

Dimension

231(L)*110(W)*84(H) mm

Weight

1500g
