Resolution

2.0MP(1920*1080P)

Sensor

1/1.8" 2.0MP Sony CMOS

Effect Pixel

1920(H)x1080(V)

scanning method

line-by-line scan

Shutter time

1/25s~1/10000s;

Min Illumination

Color:0.001Lux @F1.2

 white&black:0.0001Lux @F1.2

S/N Ratio

≥50dB(AGC OFF)

Wide Dynamic Range

>120dB

Digital Noise Reduction

3D Digital Noise Reduction

Privacy cover

Up to 4 privacy area

Lens

 Autofocus 3.6-11mm

video parameters

Video compression

H.265/H.264/H.265+MJPEG

Video resolution

Main stream  1080P(1920×1080)/720P(1280×720)

 Sub stream D1(704×576)/VGA(640*480)/QVGA(320×240)

Video Frame

1-25(30)fps

Video Bit rate

32KB ~16Mbps

Audio parameter

Audio compression format

G.711a/ G.711u/G.726

Audio Mount

Non support

Smart Function

Smart sense

Intelligent occlusion detection and intelligent refocus detection

Smart control

Support intelligent control, alarm opening, alarm closing, fault   clearing,intelligent noise reduction

Intelligent function

Intelligent Analysis

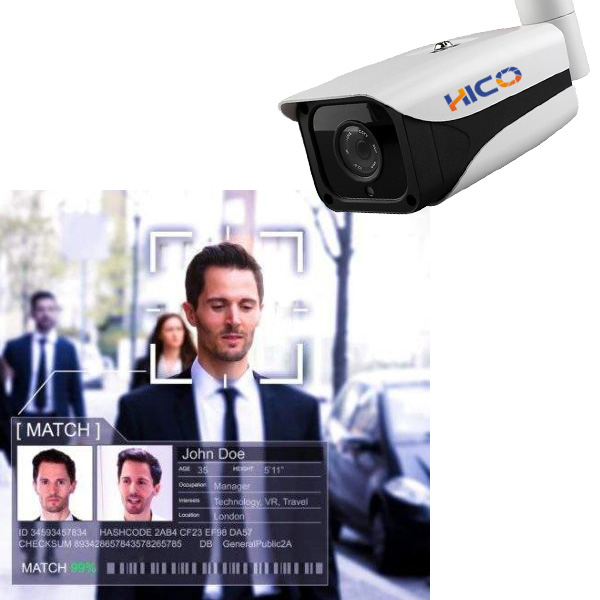

Face detection,Tracking and Capture,Face structure   Obtain,face Comparison

Network parameters

Network interface

1 RJ45 10M/100M Adaptive Ethernet port

Network Protocol

IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS,   PPPOE, DDNS, FTP

Access standard

ONVIF

Support users

Can support 8 users login at the same time

APP

Android

General Parameters

Housing

White Aluminium

Power supply

DC12V / 2A POE(Optional)

Power consumption

<14W

Operate Conditions

"-30℃~60℃,,Humidity 95% or less than (non-condensing)

Waterproof

IP66

IR Distance

50m

Dimensions

196.5(L)*87(W)89(H)mm

Device Weight

1200g

Install Way

No Bracket
