Features:

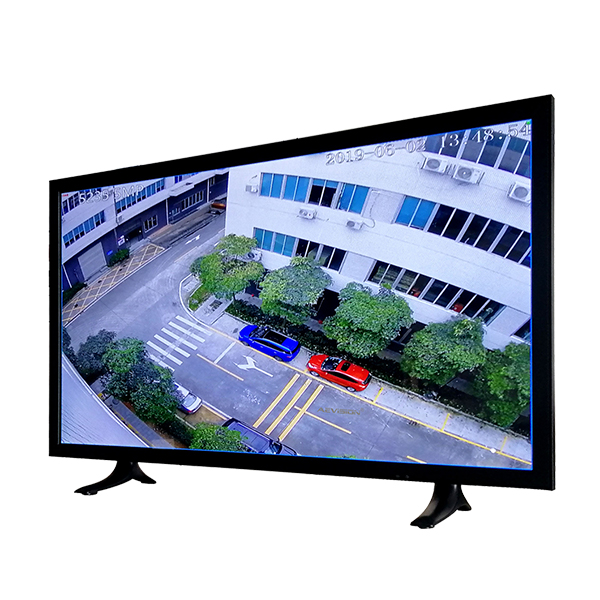

Professional CCTV 4K Led Monitor
32” TFT LED with Fireproof Casing
Display Resolution: 3840*2160
Support Multi-Language OSD
Input 180~240V/0.7A/50W/50Hz

sales@hicotek.com
  • Specification
  • Details

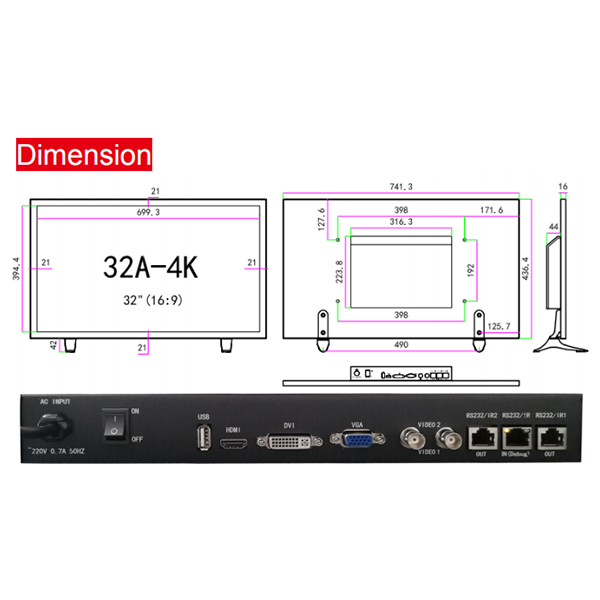

  • Drawing
  • Enquiry
  • Recommend

LED Monitor Features:


1. HD: 3840*21604 times higher than normal monitor.

2. Screen automatically detects and displays the resolution of the input signal.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. It adopts full metal casing, strong structure, fireproof, moisture proof and shockproof, especially suitable for equipment that is susceptible to electromagnetic interference.

8. Adopt 10bit image chip processing technology, high pixel progressive scan, excellent texture.

9. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

10. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

11. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

12. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

13. Using nanotechnology, the picture is more three-dimensional, transparent.

14. This machine also comes with a splicing function, no external splicer.



Model NO.

HC-LED32A-4K

Monitor Panel

Type

Professional CCTV Monitor

Resolution

3840*2160

Screen Size

32”

Screen Style

TFT Led

Sceen Ratio

16:9

Brightness

500nit

Contrast Ratio

10000:1

Response Time

5 ms

Display Area

699.3*396.4mm

View Angle

170°

Display Color

16.7M

Control Method

Panel Infrared

Monitor Interface

Input Port

HDMI*1 + VGA*1+USB*1+DVI*1+RS232*1+BNC*2

Output Port

AV*1+RS232*2+ CVBS*2

System

PAL, NTSC,SECAM

OSD Language

Multi Language including Chinese, English, French,   Spanish, Italian, Russian, Japanese and so on

Audio

HDMI Support

Power Supply

Power Input

180~240V/0.7A

Power Frequency

50Hz

Total Power

50W

General

Led Casing

Professional Fireproof Iron Metal Casing

Outer Dimension

741.3*436.4mm(Exclude foot height)

Foot Height

25mm

Installation Mode

Desktop/Hoisting/Wall Mount

(with 4 * Hexagonal Column Screw)

Remote Controller

Yes

Working Temperature

-5° - 50°C(20°C is the best)

Working Humidity

10%-90% RH

Storage Temperature

-20°C - 60°C

Monitor Brand

HICOTEK/Neutral/OEM Optional

Package Size

850*600*190mm

Net Weight

6.8 Kgs

Gross Weight

10 Kgs

Carton Size

2PCS/CTN,850*600*380mm

Carton Weight

20 Kgs




Please enter your inquiry details such as model no., lens, color,quantity,ect .
